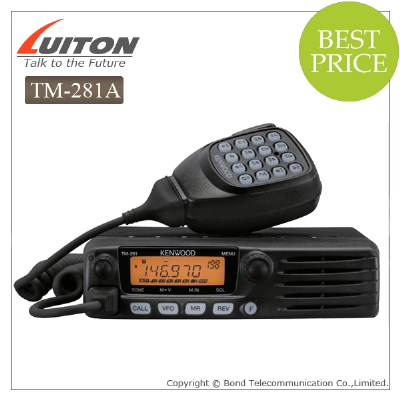

65W Radio Mobile Base Station TM-281A/481A

TM481A: UHF400-430/440-840MHz TM281A: VHF136-174 MHz On or off the road, Kenwd, s TM-281A is a mobile radio you can always count on. As tough as nails, this MIL-STD-compliant transceivers delivers powerful performance, excellent audio clarity, and a host of advanced features. It offers superd operating ease day or night thanks to the large thanks to the large backlit LCD and illumianted keys. So the next time you take off, take the TM-281A Key Features: 65 Watt RF Output Rugged Construction to MIL-STD 810 C/D/E/F/G Standards Alpha-tagged Memories High-Quality Front Mounted Loudspeaker Built-ln CTCSS/DCS Encoder/Decoder Replaces previous TM-271A model General Features: RF Output Power (approx. ) High 65W RF Output Power (approx. ) Low 25W TX Frequency Coverage VHF 144 to 148 MHz(136 174 MHz optional) RF Frequency Coverage VHF 136 174 MHz Transmitter Modulation Variable-Reactance modulation Transmitter Modulation Distortion Less than 3%(300 Hz to 3 kHz) Transmitter Maximum Frequency Deviation Wide ± 5kHz Antenna Impedance 50Ohm Yes Audio Output Power More than 2W(5% Distortion) Weight 1.13kg(approx) Current Drain RX Less than 1A Current Drain TX Less than 14A (Hi-Power), Lessthan8A(Low-Power) Dimensions 160mm(W)× 43mm(H) × 136mm(D) excluding projections Frequency Step Sizes 2.5, 5, 6.25, 10, 12.5, 15, 20, 25, 30, 50 and 100 kHl Frequency Stability ± 2.5ppm(-20° CTO+60° C) Modes-F3E FM Yes Operating Temperature Range -20° CTO+60° C Power Requirement 13.8 VDC ± 15% Yes Receiver Intermediate Frequency 1st lF 49.95 MHz Receiver Intermediate Frequency 2ND lF 450 kHz Receiver Selectivity - Narrow More than 10 kHz at -6dB, Less than 24 kHz at -60 dB Receiver Selectivity Wide More than 12 kHz at -6dB, Less than 30 kHz at -60 dB Receiver Selectivity Narrow Less than 0.22 PV at 12 dB SINAD Receiver Selectivity Wide Less than 0.18 PV at 12 dB SINAD Receiver Squelch Sensitivity Less than 0.1 PV Technical Specifications of TM-481A/281A mobile radio station RF Output Power (approx. ) High 65W RF Output Power (approx. ) Low 25W TX Frequency Coverage VHF 144 to 148 MHz(136 174 MHz optional) RF Frequency Coverage VHF 136 174 MHz Transmitter Modulation Variable-Reactance modulation Transmitter Modulation Distortion Less than 3%(300 Hz to 3 kHz) Transmitter Maximum Frequency Deviation Wide ± 5kHz Antenna Impedance 50Ohm Yes Audio Output Power More than 2W(5% Distortion) Weight 1.13kg(approx) Current Drain RX Less than 1A Current Drain TX Less than 14A (Hi-Power), Lessthan8A(Low-Power) Dimensions 160mm(W)× 43mm(H) × 136mm(D) excluding projections Frequency Step Sizes 2.5, 5, 6.25, 10, 12.5, 15, 20, 25, 30, 50 and 100 kHl Frequency Stability ± 2.5ppm(-20° CTO+60° C) Modes-F3E FM Yes Operating Temperature Range -20° CTO+60° C Power Requirement 13.8 VDC ± 15% Yes Receiver Intermediate Frequency 1st lF 49.95 MHz Receiver Intermediate Frequency 2ND lF 450 kHz Receiver Selectivity - Narrow More than 10 kHz at -6dB, Less than 24 kHz at -60 dB Receiver Selectivity Wide More than 12 kHz at -6dB, Less than 30 kHz at -60 dB Receiver Selectivity Narrow Less than 0.22 PV at 12 dB SINAD Receiver Selectivity Wide Less than 0.18 PV at 12 dB SINAD Receiver Squelch Sensitivity Less than 0.1 PV Photos:Packaging & Shipping· 1x radio body· 1xDC power line· 1xMicrophone· 1x Mounting Bracket· 1x User's ManualOur ServicesCondition, Payment and Shipping:1 We glad to ship to WorldWide.2 Please make payment by Paypal, Western union, bank wire transfer (T/T) after confirm the order.3 Transportation: DHL, FedEX, UPS, TNT or EMS, HongKong post airmail. By air & by sea.4 Item will be shipped out within 3-7 working days upon receipt of the payment. (Excluding Saturday, Sundays & China Holidays)5 Shipment may arrive within 3-16 days. Actual delivery days would be different for varies countries.6 We do single and combine shipment.Payment Policy:We could only accept payment by Western Union/TT/PayPal in this stage.Warranty Service:We 100% Guarantee your Satisfaction1 Please report us if there are any problem, we will solve it ASAP.2 This items comes with 1 YEAREquivalent replacements can be provided with shipment of your next order if the products are broken for inartificial factors within 1 YEAR; However photos are needed for us to find the factors of damaging them.3 Shipping and handling fees are not refundable for return or exchange items.Company InformationBond Telecom Co., Ltd. Specializes in producing and marketing professional FM radios, with marine radio, CB radio, mobile radio, transciever, interphone, walkie talkie, 2 way radio, two way radio, portable radio etc. We have been in this field more than 9 years. Our main markets are South America, Asia and the Middle East. Our products have won a good reputation in those markets. We can supply OEM and ODM services. Please feel free to contact us for further information.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/
