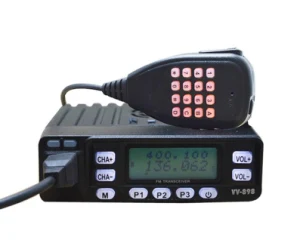

Mini 10W Dual Band Mobile Radio Transceiver Hys Tc-898UV

Basic Info.Model NO.HYS Transceiver TC-898UVWavelength and FrequencyLong-waveApplicationCivilian, IndustrialCertificationISO, CEStyleDual Band Mobile RadioCondition New StandardStandardScreenWith ScreenNameMini 10W Dual Band Mobile Radio TransceiverDual Band136-174m and 400-470MHz and 245MHz (Receive Only)Channel Capacity199High/Low Output Power4W/10WOperation ModeHalf-DuplexDimension (L*W*H)120*90*40mmWeight315gSpurious Radiation60dBTx Current1A/1.8AModulation TypeF3eTrademarkHYSTransport Packagein Carton of Mobile Car Radio FM TransceiverSpecificationISO/CEOriginChinaProduct DescriptionMini 10W Dual Band Mobile Radio Transceiver TC-898UV  Main Feature :1.  Dual band: 136-174MHz/400-470MHz/245MHz (Receive only)2.  Dual Reception/Dual Display3.  Voice Compand and Scrambler4.  Multi silent mode (QT/QTADT/QTXDT) 107 groups DCS/58 groupsCTCSS5.  DTMF encoding and DTMF decoding6.  PTT ID(Voice broadcast PTT ID)7.  All calls, group calls and selective calls8.  Monitor, RX Inhibit, RXTX Inhibit and Emergency Alarm9.  FM Radio(87.5MHz-108MHz)10. Scan/Scan add11. Channel name edit available12. 199 memory channels13. High/Low power (10W/4W)14. APO (Auto Power Off)15. TOT (Time-out timer)16. Font Set (Big/Small)17. VOX (Level adjustable)18. Busy channel lockout19. Keyboard lock (Auto/Manual)20. Multi scan mode (TO/CO)21. Channel steps (2.5K/5K/6.25K/10K/12.5K/25K)22. Wide/Narrow band selection (25KHz/12.5KHz)23. TX Stop24. Talk Around25. Beat frequency26. Reverse frequency function27. 1750Hz burst tone28. Four key programmable29. Lease Function (can program lease time of the radio at a exact time)30. Input frequency by using Keypad31. Wireless changing frequency32. Timepiece33. PC software disable frequency input34. Passwords for menu functions Set35. PTT Times per Minutes Set36. All/Function reset37. 13.8V DC Power Supply38. Size: 120*85*40mm39: Connector :Sl-16 female/SO239 TX Frequency400~470MHz or 136~174MHzRX Frequency400~520MHz or 136~174MHz 200~260MHz  or 87.5~108MHzChannel Capacity199High/Low Output Power4W/10WOperation ModeHalf-DuplexDimension (L*W*H)120×90×40mmWeight315gModulation Limitation≤±5KHzSpurious Radiation60dBTX Current1A/1.8AFrequency Stability±2.5PPMRx Sensitivity
