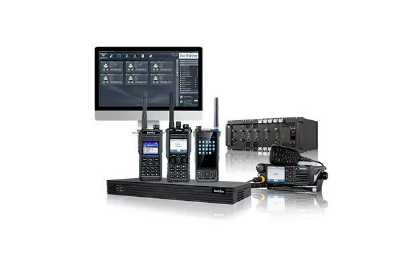

Btx System Two-Way Radio Dispatch System Station 4 8 Channels Slots

  Why choose us√ 30 years Walkie-talkie manufacturer direct supply, OEM/ODM service available√ 5 professional R&D centers with an average of 10 years of experience to build efficient industry solutions for you√ 100% strict quality control throughout the process to reduce after-sales risks√ Sales network in 150 countries for immediate service  Product DescriptionBTX, a multimedia communication and control system based on IP network, integrates DMR trunking, video, monitoring, text, voice dispatch, etc. With soft-switching technology and distributed architecture, it achieves cross-standard/ system/ region/ department/ operator interconnection. BelFone owns patents for this comprehensive communication system of strong expansibility and high security.   DMR Advantages ·Doubled frequency capacity with 2 timeslots in 12.5KHz channel spacing ·Clear digital audio even in fringe areas and noisy environments ·More power-efficient (saving up to 40% power) ·Data and voice services BTX Trunk is a trunking system designed for large networks ranging from hundreds to thousands of users. Based on DMR Tier II standard and technology, BTX system delivers exceptional performance and reliability, centralized network management and information security, improved personnel safety and business efficiency, greater flexibility and scalability to meet the user's future needs.Features Large CoverageNonlinear amplifier combined with large coverage technologies makes it possible to achieve the same coverage area with fewer base stations, resulting in a much simpler network structure and a much lower networking cost which reliability and security are enhanced. This greatly facilitates both operation and maintenance. Integrated Network DesignBelFone BTX Trunk is designed to provide a basic trunking network with minimum facilities. It is meant to be simple and easy to use. The integrated base station works as a single site trunking with expandability to establish multisite network by IP connection to core network. The MSO is a highly integrated software which provides switch between and interconnectivity with PSTN networks. Integrated Modular Base Station DesignBelFone BTX Trunk base station adopts a highly integrated and modularized design to enhance reliability. The 19-inch rack structure and mature ATCA frame make it the most robust and reliable single trunking base station. Superior ReliabilityWith multilevel redundancy and fallback, BTX system delivers great reliability. The redundancy backup mechanism is employed to retain the integrity of some key devices, for example, base station controller redundancy and main control channel backup, as well as link backup for the network elements. TopologyApplicationsPublic Utility   Emergency Response   Airports   Forestry   Municipal Services   Police Offices Products  DMR Trunking Base StationDMR Tier II Trunking Base Station for BTX System ·19 Inches Rack Structure Based on ATCA; ·The baseband and B/S control unit adopt plug-in design. Each unit is connected by independent data bus and control bus; ·All IP Design, Each Unite Communicate with IP, Ensure Good Reliability and Stability ·Integrated module design, which includes BCU, TRU, RCU, CDU;  ·The standard 2 carriers(4 channels) and 4 carriers(8 channels) channel units(RCU, TRU) can be extended to 16 carriers.  ·50W TRU Output Power ·Frequency Band: VHF: 136- 174MHz, UHF: 400-470MHz/350- 400MHz Integrated GatewayMulti-Protocol Gateway for BTX System ·IP Network Interface: 10/100M RJ45 ·FXO Interface: 2 Line Per Unit (Max. 12 Units), RJ11. ·FXS Interface: 2 Line Per Unit (Max.12 Units), RJ11 ·E1 Interface: 2 Line Per Unit (Max.12 Units), E1  ·Cellular Interface: GSM/CMDA, WCDMA, LTE(TDD/FDD) ·Radio Link Interface: Max. 4 Radios (HFNHF/UHF) RS232 MSO Server (Core Network)Mobile Switch Office for BTX System ·Small and Middle Network Design, High Integration ·Compact Size in 1U 19 Inch Design for Rack Mounted ·Support Single MSO and Distributed Multi MSO Deployment, Expandable ·Support Switch between DMR Trunking Radios and PSTN/Cellular Phone (With Integrated Gateway) Function List  Functions of BTX Trunk SystemNO.FunctionNetwork DeviceMobile stationDispatching station1Registration.•-2Delete Registration •-3Authentication •-4Roaming.••5Private Call•••6Group Call.• 7Group Call Late Entry.•-8Group Call Combine.•-9Broadcast Call.••10Emergency Call.••11Priority Call00-12Alarm.•-13Environment Monitor.•.14Monitor.-.15Forced Interrupt•-.16Forced Break..•17Handover.•-18Time-out Timer.•-19Talker ID Identify ••20PTT Authentication. •21Remote Kill.••22Stun.•.23Revive •.24Dynamic Regrouping • 25Call Limit.•-26Remote Device Check.•.27SMS.••28GPS.•.29Network Management.--30End to End Encryption00031Interconnect between DMR Systems•0-32Telephone Call00033Power Control00-34Include Call00035Call Diverting00036Busy Queuing00037Giwped Data00038Air Interface Encryption00•39Limited Base Station Call...Note: • Basic function o Optional function - Not required or N
