DVB-S/S2 HD Satellite Finder TV Dish Aligner Antenna

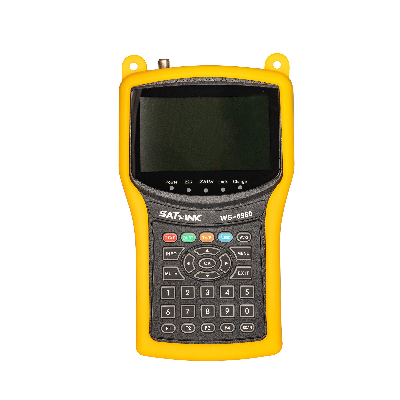

WS-6960 is a DVB-S/S2 and MPEG-2/4 H.265(8 Bit) compliant handheld satellite meter. With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service to residential homes or multi-dwelling units.  • 4.3 Inch High Definition TFT LCD Screen• Fully DVB-S/DVB-S2, MPEG-2/MPEG4 compliant • MPEG-2 / H.264 Hardware decoding• Digital meter for signal strength and quality• Supports scan of Auto,Blind,Manual or NIT• Sound and Light Alarm for Locking Signal• Auto Calculate Angle of AZ ,EL• Supports DISEQC 1.0/1.1/1.2 ,0/22khz Tone• Speaker Integrated• Support both AV out and AV in• LNB short protect• 7.4V/3000mAh Li-Ion Battery Included• Software upgrade via USB port• Easy to carry  TECHNICAL SPECIFICATION TRANSMISSION STANDARDS DVB-S2/S, MPEG-2,MPEG-4,H.264 SATELLITE INPUT/DEMODULATION Connector Type F Type Input Frequency 950 to 2150 MHz Signal Input Level ‐ 65 to ‐25 dBm Band Switch Control 22KHz LNB Supply 13V/18V, IMax 400mA Demodulation Type QPSK,8PSK Symbol Rate 2
