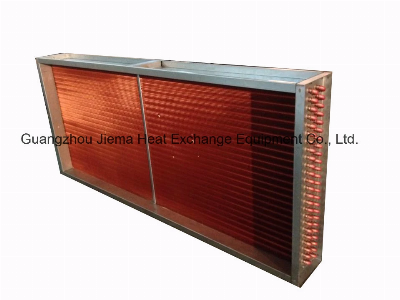

Cooling Coils Air Handing Unit for 16ton Air Conditioning System

Air Cooling Coils product descriptionThis air cooling coils is made of copper tube with copper sheet (or aluminum fin) ,enjoy advanced mechanical tube expander and double-flange aluminum fin structures.   Standard Component Materials Tube:Copper tube Fin:Copper sheet ,Aluminum Sheet. Casing:Galvanized sheet, Carbon Steel,Stainless Steel. Header:Iron,Copper tube,Stainless Steel. Air Cooling Coils Advantages 1,Hihgly heat transfer coefficient . The copper tube expander makes copper tube contact the aluminum sheet and accelerate the turbulent flow,destroy the boundary layer ,and enhance the heat transfer coefficient . 2,Excellent heat transfer performance. This structure ,together with the rationally designed water route,tube distance and sheet distance offer excellent heat transfer performance,small air resistance,compact structure,light weight and other advantages. Air Cooling Coils Size Copper tube OD Hole Pitch Row Pitch Fin Material Fin Pitch 9.52mm 25.4mm 22mm Aluminum Sheet/Hydrophilic Aluminum Foil/Copper Sheet/Epoxy Aluminum Foil 8PFI~14PFI 12.7mm 31.75mm 27.5mm Aluminum Sheet/Hydrophilic Aluminum Foil/Copper Sheet/Epoxy Aluminum Foil 8PFI~14PFI 12.7mm 48mm 41.57mm Aluminum Sheet/Hydrophilic Aluminum Foil/Copper Sheet/Epoxy Aluminum Foil 3PFI~6PFI 15.88mm 38.1mm 33mm Aluminum Sheet/Hydrophilic Aluminum Foil/Copper Sheet/Epoxy Aluminum Foil 8PFI~14PFI   Production information Exhibition &Factory Visiting Certificate View For more Air Cooling Coils information,Please Contact us ! Web:jm-heat-exchanger.en.made-in-china.com /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
