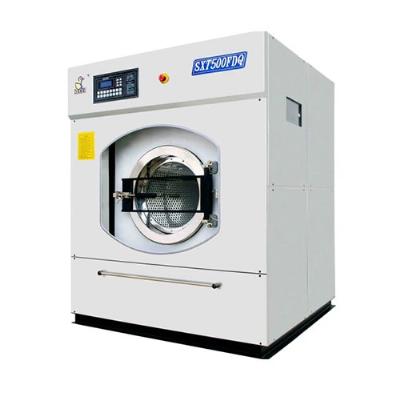

50kg Electric Heating Fully Automatic Washing and Dehydration Machine

Model No. Unit SXT500FDQ Rated capacityKg 50Motor Power Kw 5.5Washing Speed RPM 37Distribution Speed RPM 62Low Extract Speed RPM 400High Extract Speed RPM 750G-factor of High Extract G 300Cold Water pressureMPa  0.2~0.3Water Inlet  DN 40Steam pressure MPa  0.4~0.6Steam Inlet DN 25Drain Diameter DN 110AC Voltage Volt 220/380/415/440DIMENSIONS Height mm 1900Width mm 1630Depth mm 1620Net Weight Kg 1800Electric Heating PowerKw 27product Features1. Frame is made of Carbon steel material ,no special foundation required for major standard construction ;2.Out drum is made of 304 stainless steel , the thickness is 5mm;3. Basket ( inner drum ) is made of stainless steel ;All the materials which touch water we used stainless steel ;4.Door Glass is Heat- resustant tempered glass ;5. Belts is  made from Japan ;6. The door lock handle is a latch -on type to provide ease of operation ;7. Shocks and absorber ,with 4 Spring and 6 suspension ( 100kg washer ) it allows the washer to absorb ≥97% of vibration ;8.Cold Water Inlet is DN50 /Drain is DN 1009.Out of balance switch allows 30% of unbalnced load before triggering the alarm ;10. Compunter control can set up 30 programes by yourself (if more order ,Languege can Customized )11.Steam heating and Electric heating can Choose Unique design constructionHeavy suspension system and frame support structure greatly enhance the stability of the equipment during operation.Super inner cylinder design, provide guarantee for reliable and smooth washing , fully meet the washing requirements of different fabric.Large screen LCD computer, more than 30 washing programs to ensure the wide use of equipment, to meet the personalized needs of different customers.Fault self-diagnosis, accurately determine the fault point, more convenient maintenance.Large loading door design, loading and unloading more convenient and fast, highlighting the humanization.Special washing bearing and oil seal design, to ensure the continuous high-speed operation of the equipment, to provide more excellent dehydration effect.Special shock absorption design, realize automatic balance under heavy load condition.Automatic washing soap system, washing more thoroughly, eliminate soap residue.Soap automatic distribution and supply system, truly realize "one key washing". (Optional)Excellent washing function and advanced energy-saving designThe washing time, washing and rinsing times, washing water level and water temperature can be set by themselves, which is automatically controlled by computer. The operation is simple and convenient.The inner barrel plate hole of washing machine adopts fish eye socket structure, smooth and even, greatly improve the cleanliness and low wear rate.Automatic washing soap supply design, after diluting into the machine, avoid high concentration of chemical materials directly contact fabric, effectively protect the washing material.Advanced frequency conversion drive design, combined with special frequency conversion motor for washing, provides a perfect washing drive scheme, suitable for all kinds of washing needs, high efficiency and energy saving.High dewatering speed, dewatering G factor of more than 300, dewatering more thoroughly, shorten drying and ironing time, prolong the service life of fabric.Humanized designLarge diameter door, high efficiency.Move the clothes and spread the fabric. Automatic tilt function is optional to reduce labor intensityEmergency brake switch is set for emergency stop.User-friendly operation interface, location more suitable for operation.Automatic washing soap supply design, pneumatic control valve.Embedded lubrication system, easy maintenance.Electric heating and steam heating (optional).Double in, double row design, improve efficiency (optional).Interchangeable cold and hot water to meet different external environment (optional).Manual control, emergency washing, saving customers valuable time (optional).Super corrosion resistanceHigh quality 304 stainless steel drawing panel, tank body is made of high quality 304 stainless steel, scour is made of 316 stainless steel, oil seal, conveying pipeline are made of high quality corrosion resistant materials, all have excellent protection against high concentration of chemical agents, greatly prolong the service life of the machine.Model No.SXT150FDQSXT250FDQSXT300FDQSXT500FDQSXT700FDQSXT1000FDQSXT1500FDQSXT2000FDQRated Capacity     (kg)1525305070100150200Steam Pipe              DN15DN25DN25DN25DN25DN25DN40DN50Steam Pressure    Mpa      0.4-0.60.4-0.60.4-0.60.4-0.60.4-0.60.4-0.60.4-0.60.4-0.6Cold/hot water pipe mmDN25DN25DN25DN40DN50DN50DN50DN50Cold/hot water pressure  Mpa 0.2-0.30.2-0.30.2-0.30.2-0.30.2-0.30.2-0.30.2-0.30.2-0.3Compressed air pipe (mm ) φ6φ6φ6φ6φ6φ6φ6φ6Compressed air pressure Mpa  0.4-0.60.4-0.60.4-0.60.4-0.60.4-0.60.4-0.60.6-0.80.6-0.8Eletrical heating91818274563--  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(
