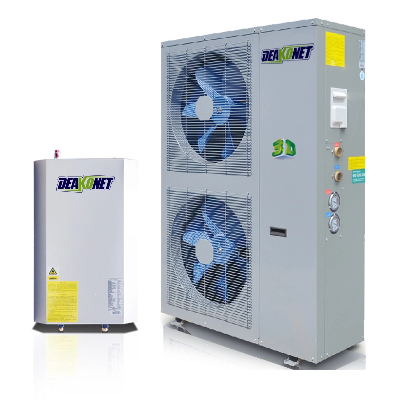

Deakon 22kw Inverter Split Air to Water Heat Pump with ERP a+++

Deakon 22kw R32 Inverter Split Air to Water Air Source Heat PumpProduct DescriptionProduct Description Deakon A1 Pro air source heat pumps absorb heat from the outside air. This heat can then be used to heat radiators, underfloor heating systems, or warm air convectors and hot water in your home.  Different from a ground source heat pump, an air source heat pump extracts heat from the outside air in the same way that a fridge extracts heat from its inside.  Thanks to combined inverter and EVI technology It can get heat from the air even when the temperature is as low as -25° C.  If add our optional solar panel, the working temperature range can extend down to -35ºC. Heat pumps have some impact on the environment as they need electricity to run, but the heat they extract from the ground, air, or water is continuously being renewed naturally. Product Parameters DEAKON MODELK-10GWR/2PK-10GWR/3PK-10GWR/4PK-16CWR/5PK-20CWR/6PK-22CWR/8PK-30CWR/10PK-42CWR/15POEM MODEL A2 PRO-7A2 PRO-9A2 PRO-12A2 PRO-14A2 PRO-19A2 PRO-22A2 PRO-27A2 PRO-36*Heating capacity  (70Hz)(A7/W35ºC)kW7.59.012.014.419.122.127.237.1COP  /4.314.324.294.324.304.284.274.28Heating capacity (80Hz)(A-12/W35ºC)kW5.97.19.511.415.017.521.529.3COP /2.902.912.892.912.902.882.882.88Heating capacity (90Hz) (A-25/W35ºC)kW4.75.67.48.911.813.716.923.0COP /2.162.162.152.162.162.152.142.15Cooling capacity (60Hz) (A335/W12ºC)kW6.78.010.712.817.019.724.233.0EER/3.793.803.783.803.783.773.763.77Dimensions (LxWxH)mm975x420x840975x370x13701045x420x14201305x460x1482Power supply Single phase/200-240V/50/60Hz**Three phase/380V/50/60HzCompressor type Twin rotor hybrid inverter evi compressor  (Optional Panasonic) Condenser type Stainless plate heat exchanger Evaporator type Hydrophilic aluminium finned copper pipe heat exchangerEEV SAGInoMIYA (Optional Carel ) 4-way valve SAGInoMIYARefrigerant type R410a (Optional R32)Water connection size 1 inch1.2inchMetal cabinet Galvanized steel plate sprayed white (Optional color) Installation InstructionsAre air source heat pumps worth it?   What are air source heat pumps and how do they work?  Features Simple installation - Water connections only  30 - 50% reduction in CO2 emissions Low running costs Low maintenance  Low noise - unobtrusive and quiet  No groundwork i.e. trenches or boreholes  No gas supply, ues or ventilation required  Comparable installation costs to gas red boilers  Suitable for both apartments & houses  Flexible, can be connected to under floor heating, low temperature radiators or fan coils  Helps achieve 3 stars rating and higher in the code for sustainable homes  Antifreeze function eliminates need for glycol  3 to 5 times more ef cient  Advanced Energy Saving Features - Weather compensation built in as standard - Inverter Technology  Inverter variable speed compressor  ECO-friendly  Plate exchanger  EEV     Low noise - unobtrusive and quiet  Easy to install, no groundwork i.e. trenches or boreholes  Ideal for off gas grid properties  Single phase power supply with low starting current  Flexible, can be connected to under floor heating, radiators or fan coils  As a package of energy saving measures, helps towards higher rating in the Code for Sustainable Homes  Can be connected with a solar thermal system which can provide 60% of your hot water needs.CertificationsCertifications  Company Profile Quality management system certificationPackFAQFAQ Q1> What does Juyang New Energy do ? A1:  Juayng New Energy is professional manufacturer of various types of heat pump and other HVAC products Q2> What is the daily production of Juyang New Energy? A2:  Juyang New Energy produce heat pumps around 500~700 PCS / day. Q3> What is Juyang New Energy certification ? A3 :  Juayng New Energy have : SGS, CE,CB, IEC60335-2-40, EN14511 certificate from TUV Lab,, got ISO9001. ISO18001, ISO14001 and CCC certificate. Get Class A+, A as ErP EN14825 test report . Q4> Where are the products of Juyang New Energy export to till now ? A4 : Currently the products has been exported to Western Europe, North Europe, South Africa, Middle-East, North American.  Q5> What is the marketing cooperation  strategy with Juyang New Energy ? A5:  Juayng New Energy is finding exclusive agent / distributor / wholesale / OEM      Juyang New Energy is a manufacturer , so we do not directly face to end user / retail , after signed sales contract for the region , we will do not sale products to others buyers in the area, the agent / distributor is in charge of the sales & service . Q6> What Juang New Energy can do for their agent / distributor /OEM ? A6 : Juyang New Energy offer training of sales, installation, maintenance. project design and test.  Q7> How to get training from Juayng New Energy ?  A7 : We welcome customer to visit to Juayng for training or technical exchange ,  or customer can invite our engineer team to their side, Customer also can get online trainning.  Q8> What Juyang New Energy offer to their business partner ? A8:  Juyang New Energy o
