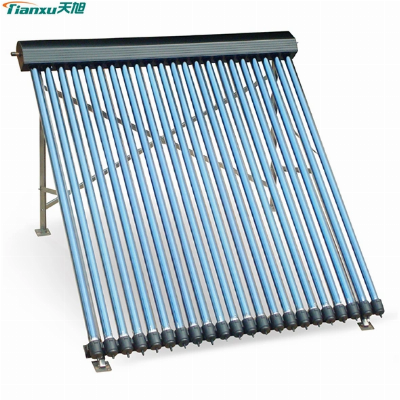

China Manufacture Superior Quality U Pipe Solar Thermal Collector

  Product DescriptionThe vacuum tubes absorb solar radiation and transfer into heat, pass to the fin by the tube wall, and then transfer to the U pipe by the fin, U pipe absorbs heat then transfer to medium,cold medium continuously flow into inlet and heated by U pipe, then flow out from the outlet, so that obtain the heat of solar energy heating water.Product Parameters   TypeTX-HPC-16TX-HPC--20TX-HPC-25TX-HPC-30Collector ComponentsSolar Vacuum Tube Φ58*1800mmAbsorbing Coating  Purple Gold CoatingVacuum Tube Quantity and Tube Spacing16 Pieces*70mm20 Pieces*70mm25 Pieces*70mm30 Pieces*70mmAperture Area1.6 m22.0 m22.5 m23.0 m2Shell MaterialAluminum (L)Insulation Materialglass wool (30mm)Net Weight47KG58KG72KG85KGMounting Hole DimensionB1757175717571757L11100138017302080L21100138017302080Dimension(D*A*H)1958×1260×1601958×1540×160 1958×1890×160 1958×2240×160Pipe Thread DimensionG3/4"ReflectorNOCharacteristic1. Twin-glass vacuum tubes: reliable, efficient, high temperature resistant, anti-freezing.2. There is no water in the vacuum tube, the system will still work even the tube broken.3. U pipe, most efficient.4. Aluminum alloy manifold and bracket, corrosion resistance, easy to install. It's suitable for flat and sloping roof.5.Flexible Installation, installation angle from 0°to9o°,roof and wall hanging installation.6. High temperature resistant rock wool glass wool, high density, good thermal insulation properties.7. High quality copper manifold, its testing pressure is 1MPa.8. Eco and economical, improves the environment and save your fuel cost.PrincipleThe solar radiation passes through the glass envelope of the vacuum tube and is projected onto the inner glass tube, and the glass inner tube is in close contact with the aluminum wing.Company ProfileSince its establishment in 2002, Shandong Longguang Tianxu Solar Energy Co., Ltd (hereinafter referred to as "Tianxu") has always engaged itself in the R&D, production, sales and service of high borosilicate glass tubes and new energy products including solar water heaters, solar vacuum tubes, solar heat collecting project, air source heat pump, photovoltaic products, etc. Tianxu has 10 sets of electric furnaces, 70 sets of solar vacuum tube production line and 3 sets of solar water heater production lines. The annual output has reached one million tons of high borosilicate glass, over 16 million solar vacuum tubes makes Tianxu the largest manufacturing base of high borosilicate glass tubes and solar vacuum tubes. In 2015, Tianxu established a joint venture company with Beijing Tsinghua Solar Co., Ltd- the solar vacuum tube technology initiator in the world. The newly established company has the world's most advanced solar vacuum tube production lines. Our Advantages1.Evacuated tubes with triple layer selective absorber coating, vacuum degree≥5.2x10-4Pa, absorbing efficiency≥92.5%;2.Applied advanced leaking test technology to ensure the whole system working stably and reliably;3.With effective heat energy transferring Aluminum fins, U pipe collectors get higher temperature in short time;4.High and constant pressure polyurethane foaming technology ensure the outstanding insulation quality;5.Optimal and innovative design make collectors integrated into different buildings;6.Circulation fluid in closed copper pipes(U Pipe), no water in vacuum tubes. There is no corrosion, no leaking , no scaling, no occasional tube breakages in collectors;7.Working life ≥20 years.Packaging & ShippingCertifications  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
