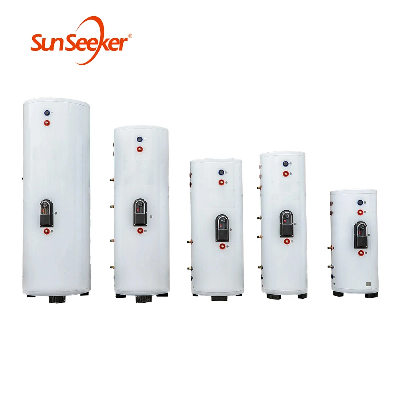

150L Pressurized Split Solar Water Heaters System for Household Heating

Our services1. Packing: Standard export carton with foam or wooden box, Wooden Box Packing for Sample 2.Shipping: 7 days for sample, 7-10 days for 20/40 container 3.MOQ: Sample is available 4.Warranty: 5 years guarantee for whole set solar water heater 5.Port of departure:Shanghai or Ningbo 6.Supply ability: 6000 sets per month 7.life time : more than 20 yearsProduct Introduction Item noStorage tanksolar collectorWorking stationCBM(whole system)CBMZY-3SZ-100100LiterZY58/1800-12sp116+5L expansion vale0.5250.3ZY-3SZ-150150LiterZY58/1800-15sp116+5L expansion vale0.6640.37ZY-3SZ-200200LiterZY58/1800-20sp116+5L expansion vale0.8730.44ZY-3SZ-300300LiterZY58/1800-30sp116+5L expansion vale0.9210.56ZY-3SZ-400400LiterZY58/1800-40sp116+5L expansion vale1.2190.64ZY-3SZ-500500LiterZY58/1800-50sp116+5L expansion vale1.50.7Specifications:Specifications:1.vacuum tube:Vacuum Tube With Copper Heat Pipe.2.Inner Tank:SUS304-2B Food Class Stainless Steel,By Argon Arc.3.Outer Tank:Galvanized Steel/Color Steel.4.Bracket:Galvanized Steel/Aluminum Alloy/Stainless Steel.5.Insulation:Polyurethane Foam.6.Insulation:50mm.7.packing:In Standard Exported Carton.8.Accessories:Electrical Heating,Safety Valve,Magnesium Bar,Temperature Sensor,Controller,Electrical Elements,etc.9.Copper Heat Pipe:Heat Pipe Tubes,Thickness:0.6mm,And 140mm Condenser.Anti-freezing Function.10.Working Pressure:Normal Working Pressure Is 6 Bar,And Testing Pressure Is 12 Bar. Features:1.Pipeline Is Made Of All Red Copper And Conducted By Heat Transfer Medium Liquid.2.Temperature Preservation Is Equipped With Standard Electric Water Heater Setting,Automatic Temperature ControlExchanger,And Increase Anode Magnesium Bars Sticking To Prevent Furring.3.The Insulating Layer Uses Polyurethane Bulk And Has A Good Effect Of Temperature PreservFAQQ: Are you a manufacture or trading company? A: We are a manufacture special for solar water heater. Q: Which payment way you accept? A: Paypal, Alipay, T/T, L/C ,D/P. Q: What's the MOQ? A: For trail sample order, 1pcs is available. Q: What's your delivery time? A: 7-10 working days after receipt of signed PI and down payment Q: What is your package ways?A: Generally, standard products with standard package. Inside: plastic foam. Outside: cartons Q: Do you have other ADDITIONAL SERVICE?A: YES We could offer other accessories (cover side/ support / solar water heater controller /silicon seal /rubber seal )used on solar water heater system and the price will be much competitive./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
