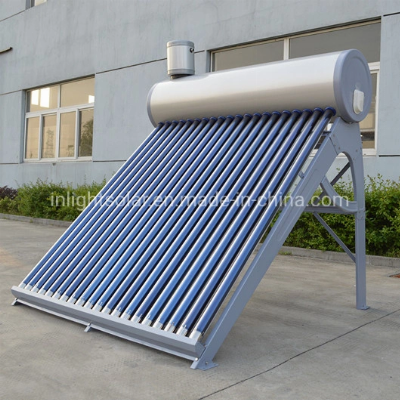

Glass Tube Solar Water Heating

Evacuated Tube Collector Water Heater 1. 18years manufacturing experience 2. CE certificate, passed ISO9001 3. 15 Years Warranty for vacuum tube Evacuated Tube Collector Water Heater Features:   Technical Parameters:  Vacuum tube Spec.(mm) Φ58×1800    Φ70×2000 Tube (pcs)  12 / 15 / 16 / 18 / 20 / 22/ 24 / 28 / 30 / 36 / 42 Material  3.3 Borosilicate glass, magnetron spluttering selective coating Coating  AL/AL-ALN(H)/AL-ALN(L)/ALN or Cu/SS-ALN(H)/SS-ALN(L)/ALN  Water tank Capacity  90 ~ 400L for inner water tank Inner tank  Food-grade stainless steel plate SUS304-2B 0.4mm Insulation  High-density polyurethane integrated foam-forming 50~60mm Tank shell  Anti-corrosion fluorocarbon plate  Bracket Material  Galvanized steel 1.5mm  Accessories Stainless bolts & nuts, Silicon rubber seal, Dustproof rubber seal, Plastic pipe holder  Optional device Electrical heater, Intelligent controller / Assistant tank, Anod magnesium  Tilt  angle 25°~ 50°  Water output 45-95°C  Hail resistance Φ25mm diameterVacuum tube: Hail-resisting 3.3 borosilicate glass with high-tech single-target selective coating ensures an efficient solar collecting, tri-target vacuum tube with its patent interference coating makes the efficiency not only improved by 12% but also with a 380oC high temperature resistantce without peeling off the coating layer. Inner water tank: Food-grade stainless steel SUS304-2B as inner tank keeps the water clean and drinkable, together with advanced argon arc welding technics to ensure it with a long lifespan (more than 15 years). Water tank shell: High quality fluorocarbon plate, with its special coating treatment ensures a long life even to ocean coast weather. Insulation Layer: High-density polyurethane integrated foam-forming with twice slaking treatment, preserves hot water temperature as long as 70~80 hours. Supporting Bracket: Very strong stainless steel plate with a good weight bearing and wind resistance design (140 km/hr), easy installation, universal bracket suitable for either flat and slope roof installation. Accessories: Stainless bolts & nuts, water-proof silicon rubber, anti-aging dustproof rubber seal, plastic pipe holder and ventilating cap to ensure their lives as long as other parts of the system Optional devices for fluorocarbon plate glass tube solar heating Assistant tank, automatically feed tap water into storage tank to keep it sufficient always Electrical heater, as an auxiliary heating element in case of raining or cloudy days so as to ensure a continous hot water supply Intelligent controller, automatically controls water refill and startup of auxiliary heating device, more intelligent system operation Warranty: 3 years international responsibility for integrated system exchange and 15 years for glass vacuum tube compensation due to original quality problems /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
