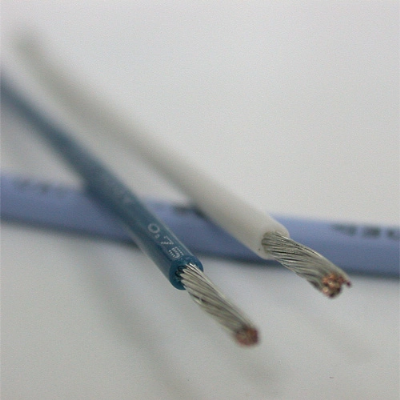

Flexible Core FEP Insulated Fluoroplastics Cables UL1332

Specifications: 1) Temperature range: -100Celsius ~ +200Celsius 2) Voltage rating: 600V 3) AWG: 10 ~ 30 4) We can supply a wide variety of wire suitable for appliance internal Wiring 5) The tag may also indicate the sentence of "suitable for immersion in Gasoline vapor and 80Celsius oil, or with 600V peak electric current. " Outer packing: 305m/roll Our factory is a professional manufacturer of high temperature and heating cable. We welcome to OEM. SizeComposition wires/Unit Wire DiaOutside Diameter of conductor (mm)Thickness of insulator(mm)Consult Diameter (mm)Packing length (m) 10AWG 37/0.42 2.940.333.50 305 12AWG 19/0.47 2.350.332.90 305 14AWG 19/0.37 1.880.332.53 305 16AWG 19/0.30 1.500.332.18 305 17AWG 19/0.26 1.300.331.98 305 18AWG 19/0.235 1.180.331.85 305 20AWG 19/0.185 0.930.33 1.61 305 22AWG 19/0.15 0.750.331.43 305 24AWG 7/0.20 0.60 0.331.28 305 26AWG 7/0.16 0.48 0.331.16 305/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
