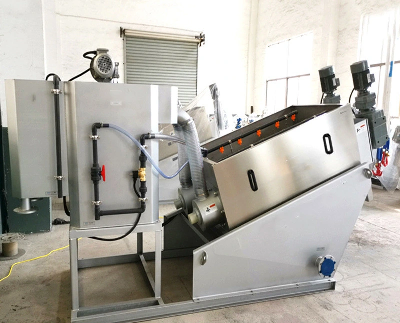

Screw Press Sludge Dewatering System for Slaughter Waste Water Treatment

iIntroduction On the basis of referning to advanced foreign technology, combined with our own independent technical innovation cooperated with university to develop a new generation of sludge dewatering equipment screw press, also named stack screw sludge dewatering machines, with the characteristics of fouling, a wide application range of, low power consumption, simpler and easy operation and maintenance, energy efficient to get rid of the easy to plug in previous generations of sludge dewatering equipment, unable to deal with low concentrations of sludge and oil sludge, high energy consumption, complex technical problems.  Our screw press sludge dewatering machinest taken into account in the dehydration mechanism hydraulic with dehydration, thin layer, the appropriate pressure and extend the dehydration path. Dewatering performance in security equipment, to further reduce energy and water consumption, extend equipment life, energy efficient dehydration target.  Application The screw press (volute sludge dewatering machine) can be used in municipal sewage treatment works and water treatment system of the petrochemical, light industry, chemical fiber, paper, pharmaceutical, leather, textile and other industries. The actual operation of thatscrew press( volute sludge dewatering )can create considerable economic and social benefits for our customers.  Concentration When screw promote axial rotation, also promoting multi-axis peripheral solid live rings relative movement, under gravity, the water filter from the relative movement of the rings gap to achieve rapid concentration.  Dehydtration After the concentrated sludge with the rotation of the screw(spiral) axis is always moving forward movement; Along the discharge exit orientation of the sludge cake, the pitch of the helix axis became smaller and smaller, the gap between the ring and the ring became smaller and smaller, spiral cavity volume shrinking; Inthe role of the exit of the back pressure plate, pressure gradually increased, to promote the spiral axis followed by continuous operation to promote the sludge in the water discharged by squeezing rising cake solids content, and ultimately the continuous dehydration of the sludge.  Self cleaning Rotation of the screw axis, and promote swimming ring rotation, the device relies on the move between the fixed ring and swimming ring to achieve a continuous self-cleaning process, thus cleverly avoid the traditional dehydration common congestion.  CodeModelDried solids capacity (kg/h)Sludge capacity(m3/h)Low densityHigh density2000Mg/l5000Mg/L10000Mg/L20000Mg/L2500.50Mg/L50000Mg/L1FLSDPW101351.50.60.50.250.20.12FLSDPW13161031.210.50.40.23FLSDPW201122062.4210.80.44FLSDPW202183093.631.51.20.65FLSDPW301305015652.5216FLSDPW302601003012105427FLSDPW303901504518157.5638FLSDPW35212020060242010849FLSDPW35318030090363015126Dimension of screw press  CodeModelScrew pressDiameter& qty(mm/PCS)Sludge press cake discharge height (mm)Length(mm)Width(mm)Height(mm)Net weight(kg)OperationWeight(kg)1FLSDPW101100*1215181675610401902802FLSDPW130130*1250196975610402053003FLSDPW132130*2250206991010402754204FLSDPW202200*2350250093512704706805FLSDPW301300*14953255985160082012306FLSDPW302300*2495345512951600135020507FLSDPW352350*2585414015502250245028108FLSDPW353350*358544202100225033504850  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
