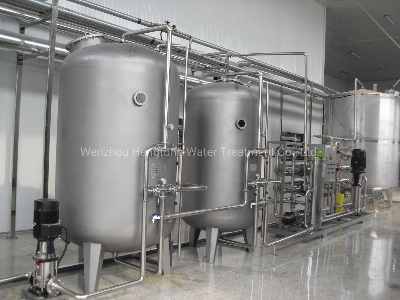

Reverse Osmosis System RO Water Treatment Equipment

Reverse Osmosis System RO Water Treatment EquipmentTechnological ProcessRaw water(inlet water) → raw water tank → feed pump → sand filter → activated carbon filter → cartridge filter,precision filter → high pressure pump →RO unit → pure water tank → (UV light sterilizer or ozone sterilizer) useRaw water(inlet water) → raw water tank → feed pump → sand filter → activated carbon filter → cartridge filter,precision filter → high pressure pump →Stage I RO unit → Stage II RO unit →middle water tank → EDI system → polished mixing bed → pure water tank → (UV light sterilizer or ozone sterilizer) useComponentsRaw Water PumpMultiple Media FilterFilter MediaActivated Carbon Filter Filter MediaCartridge Filter Filter ElementDosing Device Dosing Pump Dosing TankRO Unit  High Pressure Pump RO Membrane Membrane Housing Pressure Gauge Flow Meter Flush ValvePressure Regulating ValveRecycling Valve Check Valve FrameMembrane Washing SystemWashing Pump Washing TankPipes & FittingElectric Control SystemControl PanelPLC Programmable High & Low  Pressure Switch Conductivity Meter Electrical Instrument Wire & CableOptional items Purified Water TankOzone GeneratorOzone Mixer TowerUV SterilizerRO specification  ModelFlow rate (L/h)Power(KW)Water use efficiencyRO membraneDimension L X W X H(mm)RO-500L5001.5≥ 50%40401650X630X1800RO-750L7502.5≥ 50%40401870X630X1850RO-1000L10002.5≥ 50%40401870X650X1850RO-2000L20003.5≥ 50%40402440X650X1750RO-3000L30004≥ 50%40402440X620X1850RO-5000L50007.5≥ 50%80402000X900X1800RO-6000L60009.5≥ 60%80403000X900X1800RO-8000L800013.5≥ 60%80403000×900×1800RO-9000L900014≥ 60%80404000X900X1800RO-10T10T/H19≥ 60%80403000X900X1800RO-12T12T/H19.5≥ 60%80404000X900X1800RO-15T15T/H23≥ 60%80404000X900X1950RO-20T20T/H28≥ 60%80405000X900X1950RO-30T30T/H55≥ 60%80407000X900X1950  RO membrane technology introductionReverse osmosis is to separate the solvent (usually water) in the solution through a reverse osmosis membrane (or semi-permeable membrane) with sufficient pressure, so it is called reverse osmosis.Reverse osmosis, as an efficient desalination technology, can remove impurities such as inorganic ions, bacteria, viruses, organic matter and colloids in raw water to obtain high-quality purified water.According to the different osmotic pressure of various materials, the reverse osmosis method can be used to achieve the purpose of separation, extraction, purification and concentration.RO system flow diagramSingle stage RO system  Two stage RO systemWater treatment equipment presentationFAQ1. Q: What products you provide? A: We are specialized in RO system, EDI system, UF system, Sewage water treatment equipment, etc.2. Q: What's the information you need before order? A1: what's your raw water ? B1: what's the capacity per hour of the equipment ? C1: What's the application of purifier water ?3. Q: How long is your delivery time?A: Generally it is 30 days, Depends on your project.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
