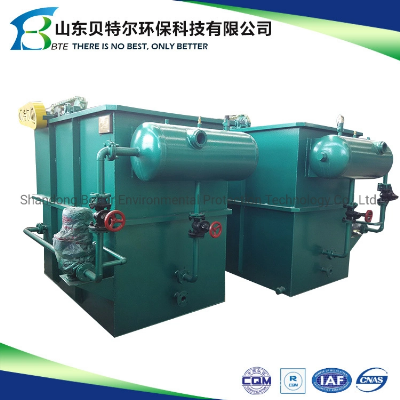

Daf Unit for Daf Dissolved Air Flotation Oil Water Separation

DAF Unit for DAF Dissolved Air Flotation Oil Water Separation  Dissolved Air Floatation (Flat-flow type)    1. Description YW series Dissolved Air Floatation is mainly for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.   2. Application (1) Remove oil and TSS. (2) Separate small particles and algae in groundwater.  (3) Recover valuable products in industrial sewage such as paper pulp. (4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.   3. Features (1) Large capacity, high efficiency and small occupying space. (2) Compact structure, easy operation and maintenance. (3) Silt expansion elimination. (5) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water. Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process. (6) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and more algae. Suitable area: slaughtering, starch, pharmaceuticals, papermaking, printing and dyeing,  leather and tannery, petrochemical industry, domestic wastewater, etc. 4. Technical Parameter SpecificationCapacity (m3/h)Dissolved gas water(m3/h)Main dynamo power (kw)Foam scraper power(kw)Air compressor power(kw)Dissolved air tank size (mm)Overall dimension   (mm)YW-52-51.5-230.551.5Φ400x10003300x1800x2200YW-108-102-340.551.5Φ500x15124000x2100x2200YW-2015-205-77.50551.5Φ500x15124600x2400x2200YW-3020-306-107.50.551.5Φ500x15125200x2600x2400YW-4030-408-137.50.752.2Φ600x18806000x2600x2400YW-5040-5015-207.50.752.2Φ600x18807000x2600x2400YW-6050-6018-27110.752.2Φ600x18807600x2800x2400YW-7060-7022-30110.753Φ650x20348400 x2800x2400YW-8070-8024-32110.753Φ650x20349200x2800x2400YW-10090-10530-35150.754Φ700x198010000x2800x2600YW-150125-15060-80221.14Φ800x198013500x2800x2600YW-200175-20080-100221.15.5Φ800x210015800x2800x2600YW-250225-250110-120221.15.5Φ800x240015200x3400x2600YW-300280-300120-180371.15.5Φ1000x290019200x3400x2800     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
