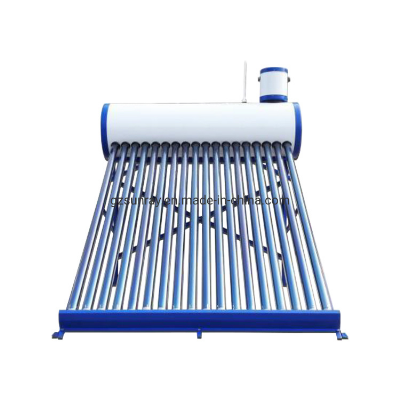

heating system 100-300 liter unpressurized solar hot water heaters priceThe details of meterial:Outer tank: Galvanized steel/Colorful steel/SUS Inner tank:SUS 304-2BVacuum tube:3-target all glass tube Absororption coating:AL-SS/CUFrame:Galvanized steel/Aluminum alloy/SUSCapacity(L)Lighting Area(m2)Vacuum tube(pcs)Loading Qty20'/40'HQ1000.9358*1800*1048/1051501.458*1800*1540/1002001.8658*1800*2037/862502.3358*1800*2531/773002.7958*1800*3023/64The details of meterial:Outer tank: SUS 304-2B stainless Steel sheet Inner tank:SUS 304-2B stainless Steel sheet Vacuum tube:3-target all glass tube Absororption coating:AL-SS/CUFrame: Stainless Steel /Aluminum alloy Parameter tableCapacity(L)Lighting Area(m2)Vacuum tube(pcs)Loading Qty 20'/40'HQ1000.9358*1800*1048/1051501.458*1800*1540/1002001.8658*1800*2037/862502.3358*1800*2531/773002.7958*1800*3023/64Outer tank: Galvanized steel/ Stainless SteelInner tank:Food grade SUS304-2B stainless steel Insulation: High density polyurethane foamVacuum tube: Borosilicate glass 3.3 with SS-CU-ALN coating Heat pipe:All copper Tu1Frame: Galvanized steel /Stainless Steel /Al Parameter tableCapacity(L)Aperture Area(m2)Vacuum tube(pcs)Loading Qty 20'/40'HQ1001.2158*1800*1075/1781501.81558*1800*1554/1282002.4258*1800*2039/922402.90458*1800*2436/843003.6358*1800*3029/69Water TankInner tankSUS304-2BOuter tankSUS/Colorful Steel/PVDF, 0.40mmInsulation50-60mm polyurethanefoamedPressure6 Bar/12 Bar(testing)Flat Plate CoverLow-iron tempered textured grass, 4.0mmCoatingBlue titanium/Black chromeHeater PipeΦ 22*δ 0.6*2pcs Copper TP2 Riser PipeΦ 10*δ 0.6*7pcs Copper TP2 WeldingLaser weldingFrameδ 1.0mm, Alumimum alloyBracket MaterialSUS/Galvanizedsteel/Aluminum alloy,1.5mmAngle0-45degree Parameter tableTank Capacity100L150L200L300L Flat PlateDimension2000*1000*80mm2015*1015*80mm2000*1200*80mm2000*1000*80mmGross Area2.0m22.1m22.4m22.0m2Numbers1pcs1pcs1pcs2pcsLoading Quantity(20'')56 sets47 sets37 sets24 setsLoading Quantity(40HQ)136 sets113 sets91 sets58 setsFeatures1) Mains pressure solar water heaters with copper coil heat exchanger2) Heat exchanging takes place instantly where hot water is being used.3) Advantage: Hot water come out immediately; Simple system strucure.4) Output pressurized hot water5) Max work pressure: 0.6 Mpa. Technical datasOuter tank: CS/Gl/SSInner tank:SUS304-2BCopper coil: 12mm O.D. and 10mm I.D. Insulation: Polyurethane foamVacuum tube: Three target vacuum tubes Absorption coating: Cu/SS/ALFrame: Galvanized steel /SUS /Aluminum alloy Parameter tableCapacity(L)Aperture Area(m2)Vacuum Tube(pcs)Copper coil length(m)Loading Qty 20ft/40ft1702.0758*1800*153053/1272252.7558*1800*203042/982693.358*1800*243534/803334.1358*1800*303529/69Features1) Use the heat pipe for the heat conduction and can get a highheat absorption efficiency and rapid heat transfer.2) The pipeline is made of red copper and conducted by heat transfer medium liquid; the crust uses aluminum alloy module material of high strength with airflow design.3) Good anti-frozen performance, it can still work under the environmental 0f -30ºC.4) Match with intelligent controller and assistant electric heater, the system can provide hot water to you any time.5) The insulation layer uses polyurethane bulk bubble and has a good effected temperature preservation.6) Can be used for bathing, washing and domestic heating. SpecificationOuter tank: Galvanized steel 0.5 mmInner tank:SUS 2B 1.0 mm-2.5 mmCapacity: 80L-1000LCollector: Heat pipe vacuum tube solar collector. Insulation: 50mm-60mm 42kg s/m3 Polyurethane foam Frame: 1.8mm thickness Galvanized steelHeat preservation: 96 hoursWorking pressure: 7 bar/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
