Compact Pressure Solar Water Heating System

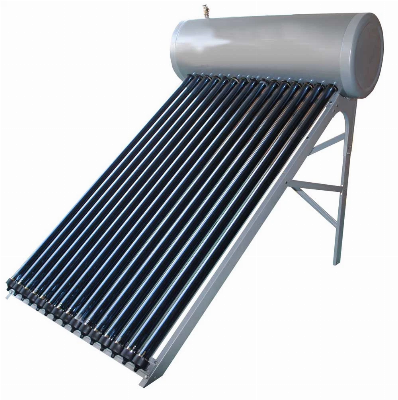

Compact High Pressure Heat Pipe Solar Hot Water HeaterIntegrative pressurized solar geyser is a renovation model for the compact solar water heater, which adopts advanced heat pipe technology, combines heat pipe solar collector with pressurized tank. Solar Vacuum tube collect heat from sunshine, aluminum ring inside transfer the heat to heat pipe, then heat pipe transfer the heat to water inside tank, the system start and transfer heat is quick in cloudy and low radiation days, daily average heat efficiency can up to 55%.Specialty:High thermal performance and working temperature: the heat exchanging rate even in winter can up above 55%.Heat collecting efficiency is at least 20% above common solar systems.Work in all day and all season: no matter any corner of the world, this system can work well even -30ºC to avoid the tube freezing problem.Reliability: No water following through the tube, so water scale can not generate and tube cracks could be avoided, the system still can keep working even with some damaged tubes.It can connect with water tap and work automatically with max pressure 0.6Mpa, bring enjoyable washing experience.Safety: P/T valve would release pressure and temperature to protect tank.Technical specification:Outer tank material: SUS304 stainless steel or powder coated color steelInner tank material: 1.2mm thick SUS304 food grade stainless steel (Optional material SUS316L)Vacuum tube material: borosilicate glass 3.3; AL-SS-CU absorb coating, with copper heat pipe insideFrame material: 1.2mm thickness stainless steelInsulation material: 55mm thickness polyurethaneSuitable for mains pressure water(up to 6 bar )Easy plug-in installationInstall the T/P valve on the pressurized tankSeal material: Stabilized High Temperature SiliconProduction flow:Packing details:solar water tank 1 carton, stand frame 1 carton, solar vaccum tubes , 10pcs / carton . For sample order, MOQ less than 2pcs , packed by wooden box . For any inquiry, please feel free to contact us !  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
