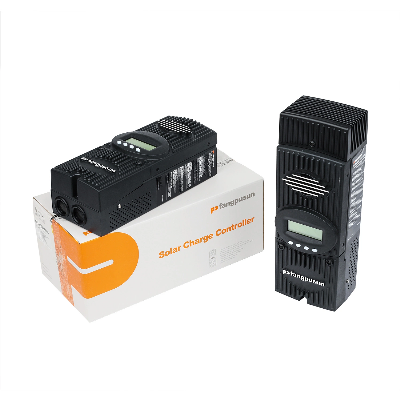

2024 Outback Power Fangpusun Flexmax 60 Flexmax 80 MPPT Solar Charge Controller

 → → → → → Click to get more details information → → → → →   Our Advantages 1. Select system voltage automatic 12V/24V/36V/48V/60V2. Hot sale 10 years3. Used for battery type: GEL, AGM, LifePO4 battery4. Key word: 1415. Aluminum shell and fan heat dissipation6. IP43 → → → → → Click to get more details information → → → → →   Detailed Photos  → → → → → Click to get more details information → → → → →   Product Parameters Nominal Battery Voltages12, 24, 36, 48, or 60 VDC (Single model - selectable via field programming at start-up)Maximum Output Current80 AMPS @ 104° F (40°C) with adjustable current limitMaximum Solar Array STC Nameplate12 VDC systems 12500 Watts / 24 VDC systems 2500 Watts / 48 VDC systems 5000 Watts / 60 VDC Systems 7500 WattsNEC Recommended Solar Array STC Nameplate12 VDC systems 1000 Watts / 24 VDC systems 2000 Watts / 48 VDC systems 4000 Watts / 60 VDC Systems 5000 WattsPV Open Circuit Voltage (VOC)150 VDC absolute maximum coldest conditions / 145 VDC start-up and operating maximumStandby Power ConsumptionLess than 1 Watt typicalPower Conversion Efficiency97.5% @ 80AMPS in at 48 VDC System voltage - TypicalCharging RegulationFive Stages: Bulk, Absorption, Float, Silent and EqualizationVoltage Regulation Set points10 to 80 VDC user adjustable with password protectionEqualization ChargingProgrammable Voltage Setpoint and Duration - Automatic Termination when completedBattery Temperature CompensationAutomatic with optional RTS installed / 5.0 mV per °C per 2V battery cellVoltage Step-Down CapabilityCan charge a lower voltage battery from a higher voltage PV array - Max 150 VDC inputProgrammable Auxilary Control Output12 VDC output signal which can be programmed for different control applications(Maximum of 0.2 AMPS DC)Status Display3.1" (8 cm) backlit LCD screen - 4 lines with 80 alphanumeric characters totalRemote Display and ControllerOptional Mate or Mate2 with RS232 Serial Communications PortNetwork CabelingProprietary network system using RJ 45 Modular Connectors with CAT 5e Cable (8 wires)Data LoggingLast 128 days of Operation - AMP Hours, Watt Hours, Time in Float, Peak Watts, AMPS, Solar Array Voltage, Max Battery Voltage Min Battery Voltage and Absorb for each day along with total Accumulated AMP Hours, and kW Hours of productionHydro Turbine ApplicationsConsult factory for approved TurbinesPositive Ground ApplicationsRequires two Pole Breakers for switching both positive and Negative Conductors on both Solar Array and Battery Connections (HUB-4 and HUB-10 can not be used for use in positive ground applications)Operating Temperature RangeMinimum -40° to maximum 60° C(Power capacity of the controller is automatically derated when operated above 40° C)Environmental RatingIndoor Type 1Conduit KnockoutsOne 1" (35mm)on the back; One 1" (35mm) on the left side; Two 1" (35mm) on the bottomWeight - Unit11.65 lbs (6.3 kg)- Shipping13.64 lbs (7.0 kg)Dimensions - Unit13.5 X 5.75 X 4" (40 X 14 X 10 cm)- Shipping18 X 11 X 8" (46 X 30 X 20 cm)OptionsRemote Temperature Sensor (RTS), HUB 4, HUB 10, MATE, MATE 2Menu LanguagesEnglish & Spanish    → → → → → Click to get more details information → → → → →   Flexmax accessories → → → → → Click to get more details information → → → → →     Related products        Flexmax 100-300 MPPT                     Mate2 data logger                                Hub10     → → → → → Click to get more details information → → → → →     Packaging & Shipping  → → → → → Click to get more details information → → → → →  Customer visit → → → → → Click to get more details information → → → → →   Feedback from user→ → → → → Click to get more details information → → → → →    → → → → → Click to get more details information → → → → →  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
