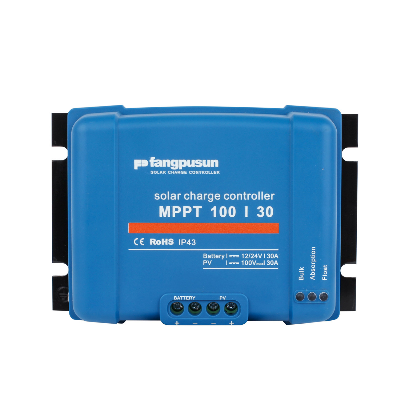

2024 Blue MPPT100/30 Solar Charge Controller MPPT 30A 12V 24V

  Our Advantages 1. Wall mount enclosure2. Could charging battery on Cloudy3. Used for 8 type different batteries,    include of lithium battery4. Easy to install and use5. four stage charging  → → → → → Click to get more details information → → → → →   Product Parameters Fangpusun solar charge controllerMPPT100/30MPPT100/50System voltage12v/24v Auto SelectMaximum output current30A50AMaximum PV power, 12V 1a,b)440W (MPPT range 15V to 80V)700W (MPPT range 15V to 70V resp.95V)Maximum PV power, 24V 1a,b)880W (MPPT range 30V to 80V)1400W (MPPT range 30V to 70V resp.95V)Maximum PV open circuit voltage100VMaximum efficiency98%Self-consumption10mACharge voltage absorption14.4 V/ 28.8V (adjustable)Charge voltage float13.8 V/ 27.6V (adjustable)Charge algorithmMulti-stage adaptiveTemperature compensation-16mV / resp.-32mV/ProtectionBattery reverse polarity (fuse)Output short circuit / Over temperatureOperating temperature-30 to +60 (full rated output up to 40)Humidity95%, non-condensingENCLOSUREColourBlue. Orange. BlackPower terminals13mm/AWG6Protection categoryIP43 (electronic components), IP22 (connection area)Weight1.5kgDimensions (H x W x D)130*186*70mmSTANDARDSSafetyEN/IEC 62109→ → → → → Click to get more details information → → → → →   Detailed Photos → → → → → Click to get more details information → → → → →   Packaging & Shipping → → → → → Click to get more details information → → → → →   Related products         BMV-702 battery monitor                   Blue MPPT150/60                             MPPT Control         → → → → → Click to get more details information → → → → →   Customer visit→ → → → → Click to get more details information → → → → →  Feedback from user→ → → → → Click to get more details information → → → → →   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
