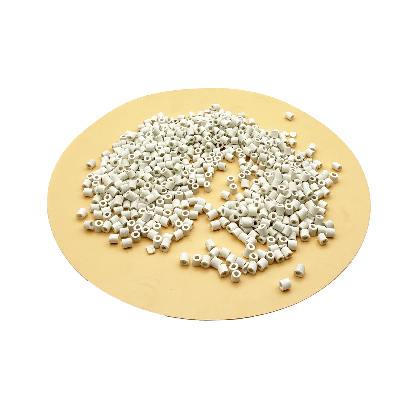

15mm 25mm 50mm Ceramic Tower Packing Raschig Ring for Distillation Column

Industrial ceramic rasching ring  1. Introduction: Ceramic Raschig Ringis the earliest developed random packing, named after the German chemist Friedrich Raschig. It's small tube cutting, which outside diameter is equal to its height, providing a surface for (re)evaporation of the most volatile part in the refluxing distillate, typically 10 mm in diameter and 12 mm long.  Large size of the Raschig rings (100mm) generally use the rules of filling the entire puzzle mode, 80mm size Raschig rings generally use the following method huddle filling. 2. Appilication:Rasching ring has excellent acid resistance and heat resistance.It can resist to corrosion of various inorganic acids,organic acids and organic solvents except hyhrofluoric acid,and can be used in high or low temperature conditions.Consequently the application range is very wide.It can be used in chemical industry,metallurgy industry,coal gas industry,oxygen producing industry,etc. Model:Ceramic Rasching RingSize:15mm 16mm 25mm 40mm 50mm 80mm 100mmColor:Light GreyDiameter(mm)D*H*T (mm)Surface area (m2/m3)free volume  (%)Numberper m3Bulk density kg/m3 Dry packing Factor(m-1) 1515*15*2330702500006909601616*16*2305731925007307842525*25*2.519078490005054004040*40*512675127005773055050*50*5938160004571778080*80*9.590681910714234100100*100*1070701000700172150150*150*155068295790142/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
