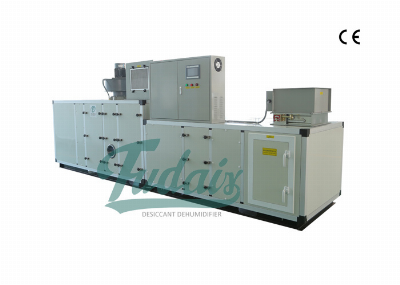

Customized Desiccant Rotor Dehumidifier 4000m3/H for Softgel Capsule Drying

Main Parameters:  ModelZCB-4000Process Airflow(m3/h)4000Regeneration Airflow(m3/h)1330Supply Air ParametersT=15-25ºC, RH=10%-30%Regeneration ConsumptionElectric(kw)24Steam(Kg/h)60Steam Pipe(mm)DN25Chilled Water TemperatureT≤7 Degree CelsiusChilled Water Consumption (T/h)12Chilled Water Pipe Diameter (mm)DN40Power of Regeneration Fan(kw)1.1Power of Process Fan(kw)4.0Power of Driving Motor(kw)0.1Power Supply(V)3Phase-380V-50Hz (can be customization)Installed Power(kw)Electric Mode29.2Steam Mode5.2Inlet of Fresh Air(mm)400*250Inlet of Reflow Air(mm)400*250Outlet of Process Air(mm)630*320Inlet of Regeneration Air(mm)550*400Outlet of Regeneration Air(mm)208*162Surplus Pressure of the Unit(Pa)≤650Dimension(mm)Length5200Width1000Height1400Weight(kg)1600  Operating Principles:Supply Air StreamOutside air is drawn into the unit using the supply fan.The warm, moist outside air first passes through filters and then the cooling coil where it is cooled.The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised.At last the air is delivered directly to the space or into an existing air handler.Exhaust Air StreamExhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan.The air filtered and then heated and humidified during the energy recovery process.The air is then heated while passing through the regeneration coil.The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.  Our Advantages:- High dehumidifying capacity- Dry air with super ow humidity can be easily obtained- It is able to supply dry air with super low dew point less than -70Celsius degree.- Its dehumidification performance is more marked under the environment of low temperature and low humidity.- Easy to operate and management, low operating cost- Long ife and durable- Complete equipment model, perfect dehumidification function- Environment protection, pollution-free  Human-machine Interface:  Refrigeration System for Option:  Application:  > War Industry, Scientific Research, Electric Power Transportation> Lithium Battery Industry, Biotechnology Pharmaceutical Industry> Chemical, Daily Chemical Industry, Food Beverage Industry> Safety Glazing Material Industry, Tyre and Rubber Industry> Medical Instrument, Vegetables Frozen, Precise Instrument> Wood Goods, Shipbuilding Painting Industry, Kinds of Storages  Certificates:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
