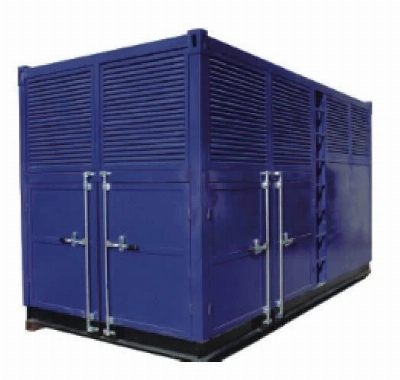

18000CMH ROTOR REFRIGERATION DEHUMIDIFIER AIR COOLED INDUSTRY DEHUMIDIFIER SYSTEM

Product DescriptionThis model adopts the combined dehumidification method of refrigeration and honeycomb rotor, and has independent dehumidification, cooling, heating and ventilation functions. Good for all-weather use.The dehumidifier can reach the technical indicators of temperature 20~28ºC and relative humidity ≤45% under the condition of inlet air temperature of -5~40ºC and relative humidity of 50~95%.ApplicationStandard air volume: 6000~18,000m/hIt is mainly used in sandblasting and painting processes such as shipyards, where all-weather, fresh air, mobile, and power supply are required.Features1. Combining the two major dehumidification technologies of freezing and adsorption.2. Equipped with automatic or manual control system.3. Equipped with a rear heater, it can effectively increase the room temperature in winter.4. Inlet air conditions: T =-10ºC~40ºC, RH =50~95%.5. Outlet air conditions: 25±3ºC, relative humidity RH ≤45%.6. The refrigeration system adopts imported semi-hermetic twin-screw compressor.7. Advanced silica gel rotor Sweden made.8. Enhanced safety system; leakage and phase protection, low voltage, overload and automatic protection of high and low voltage of the refrigeration system.9. All-welded frame structure, rainproof, anti-collision, easy to hoist.10. High residual pressure at the outlet, multiple air outlets, independent adjustment, easy to use.Configuration & Specification    No.ItemUnitDescription1General Parameter · Dehumidifier Model  NDC-18000R · Blower FanCapacity                 CMH18,000 · Refrigerating Capacity kW350 · Heating Capacity kW162 · Inlet Temperature/ HumidityºC/%-10~28ºC / ≤95% · Outlet Temperature/ HumidityºC/%18~25ºC±3ºC / ≤45% · Residential Pressure of BlowerPa≥ 1200 · Power Supply   380V/3Ph/50Hz  · Rated PowerkW323 · NoisedB(A)822Blowing System Type of Air Filter Metal Mesh Plate Type of Blower Single Air Inlet, direct connection, Centrifugal Quantity of Blower 1 Power of Blower 223Regenerative Air System Type of Air Filter Metal Mesh Plate Type of Blower Single Air Inlet direct connection, Centrifugal Quantity of Blower 1 Power of BlowerkW3 Regenerative HeatingkW1384Rotor System   Type HPS (High Effective Silicon) MotorkW0.15.1Refrigeration Compressor    · Type of Compressor Semi-hermetic Screw Type · Compressor Quantity  2 · Compressor Power kW905.2Refrigeration Condenser    · Type (tube or plate)  Copper tube, aluminum Fin,5.3Condenser Fan   · Type  Axial-flow · Quantity 2 · PowerkW225.4Refrigeration Evaporator    · Type (tube or plate)                                               Copper tube, aluminum Fin,5.5Refrigerant   Type R134A Regulation Thermal Expansion Valve6Heating System   · Type  Electric, Stainless steel fin · PowerkW1627Others   · Overall Size  (W x D x H)mm5600x2240x2800 · Weightkg6,600 · Discharge nozzles (size & quantity)NoΦ300mm*6 Transporting for Installation The unit with optional basement will be easily transported by crane or forklift: *Fork Lift Pocket Size: 380mm x 180mm*Crane Lifting Pad Eyes on top four corners hole Ø 60mmDimensionsA=5600MM, B=2240MM, C=2800MM, D=340MM  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
