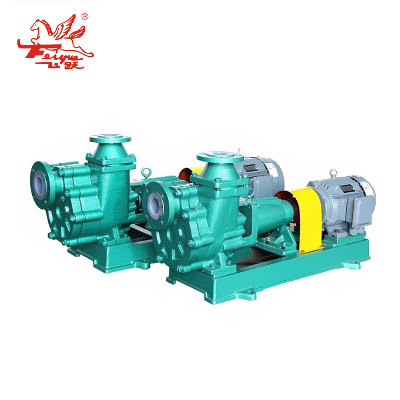

Fzb Self Priming Circulating Pump for Chemical Purpose at Competitive Prices

Self Priming Circulating Pump for Chemical Purpose at Competitive Prices  Product DescriptionConform to design standard of GB/T5656Flow range: 1.6~400m3/hLift range: ~125mDesign pressure: 1.6MPaApplication temperature: -40~150ºCApplication field: transport various clean and micro particle contained inflammable, explosive and strong corrosive medium. Mainly used in chemical industry, oil industry, oil refinery, liquid tank pumping, tank truck unloading, wastewater pumping and automatic control engineering etc.SummaryModel FZB thermal - and - corrosion - resistantself-sucking type chemical centrifugal pump is a single - stage - single -suction pump developed and manufactured by our company,through the combination of advantages of domestic and over seas similar products. It is suitable for the conveying of corrosive medium with the temperature ranging from-48ºC to 150ºC and of granule diameter of less than 3mm.For conveying medium containing fibers or granules with diameter more than 3mm, you can choose model ZW non - bl-ockage self- sucking pump series produced by our company.The performance of the pump: the flow ranges from 1.6m2/h to 400m2/h, while the lift ranging from 5m to 125m. The up-sucking height is not more than 5 meters.According to different conveying media, such materials as cast iron, cast steel, 1Cr18Ni9Ti, 1Cr18Ni12Mo2Ti, 316, 31 6L, etc can be chosen for the liquid - contacting material of model FZB self - sucking chemical centrifugal pump.Description of pump modelFZB50-32-160AFZ-code of self-sucking pumpB-code of chemical centrifugal pump50-inlet diameter of pump(mm)32-outlet diameter of pump(mm)160-nominal diameter of the blade wheel of pump(mm)A-sequence of blade wheel diameter cutting, shown as A,B,C.Chart1Pump body2Impeller3Impeller nut4Pump cover5Shaft Sleeve6Mechanical seal7Axle sleeve8Front axle bearing cover9Ball ball bearing10Vent plug11Bearing box12Axle13Rear axle bearing cover14Oil mirror15Leg        Product ParametersPerformance parameters of the tableCompany ProfileFAQ/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
