1600mm Diameter Axial Fan Maintenance and Replacement Optimization for Engine Cooling

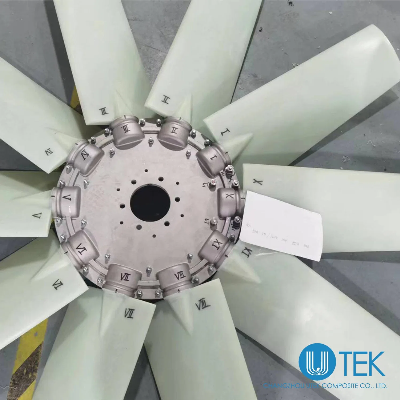

  Product DescriptionP3H/S14H/S4Z/P4Z/K6Z/9WThe P3H/S14H/S4Z/P4Z/K6Z/9W series axial flow fans is part product of UTEK,These fans are available in a wide range of application including HVAC,Compressors,Motor and Engine driven equipment,the blade size is designed to ensure that the flow rate of the airflow through the blade remains very uniform throughout the blade's surface to achieve optimum fan performance.The UTEK fan has the following advantages over a one-time injection or stamping fan:1.More efficient2.Less absorbed power3.Low noiseThe fan diameter ranges from 141 to 2200mm,and the blade twist angle can be adjusted from 20°to 50°to meet the different application requirement of the customer.The P4Z P5Z blade is only the geometric enlargement of the P6Z,other type blade is same with it and the root design is identical.The root is locked in the fan hub by a plastic fixing pin,which ensures that the blade will not be displaced after installation and the twist angle remains unchanged.blade molded from high-strength thermoplastic materials or die-cast from a aluminum alloys have the following advantages:1.Light weight High strength2.Preservative3.CustomizationDetailed Photos Product ParametersBlade MaterialSymbolMaterial   Temperature rangeCharacteristicApplicationPANylon6,Black-40ºC-110ºCAnti-agingStandard loadPAGNylon6,Black and white-40ºC-110ºCAnti-agingHeavy loadPAGSTNylon6,Black-40ºC-110ºCShock and impactStrong vilbration occasionPACASNylon6,Blue-gray-30ºC-100ºCConductivity Fire resistanceExplosive dangerALUDie-cast aluminum alloy-40ºC-150ºCLarge temperature rangeHigh temperatureBlade Diameter rangeK7Z Blade numberFan diameter mm (Minimum-Maximum)K6Z/K7Z5357  -  10287394  -  10658474  -  11459408  -  107912488  -  115916583  -  1254  P3H Blade numberFan diameter mm (Minimum-Maximum) P2H P3H 6 141  -  400 173  -  600 8 178  -  437 210  -  637 10 216  -  475 248  -  675 12 250  -  509 282  -  709 14 286  -  545 318  -  745   P4/5/6Z Blade numberFan diameter mm (Minimum-Maximum)P4ZP5ZP6Z5323  -  764305  -  1035339  -  11177360  -  801342  -  1072376  -  11548440  -  881422  -  1152456  -  12349374  -  815356  -  1086390  -  116812454  -  895436  -  1166479  -  124816549  -  990531  -  1261565  -  1343  S4/5/6Z Blade numberFan diameter mm (Minimum-Maximum)S4ZS5ZS6Z5378  -  498530  -  718702  -  9727412  -  536560  -  748732  -  10028478  -  615621  -  813790  -  10609422  -  550570  -  760738  -  100812491  -  630633  -  828802  -  107216575  -  725712  -  922876  -  1146   P9T(9W) Blade numberFan diameter mm (Minimum-Maximum)P7TP9T6607  -  1696587  -  18628660  -  1650640  -  191410730  -  1720710  -  1988For more information, please download the manualPackaging & ShippingApplication   Our Advantages1.Same quality as wingfan and multiwing2.Software to design the model3.Full sets of blade and hubGive us a chance, and we'll return you with satisfaction! /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
