Lhy Sulphuric Acid Plant Use Vertical High-Temperature Liquid Sulphur Chemical Pump

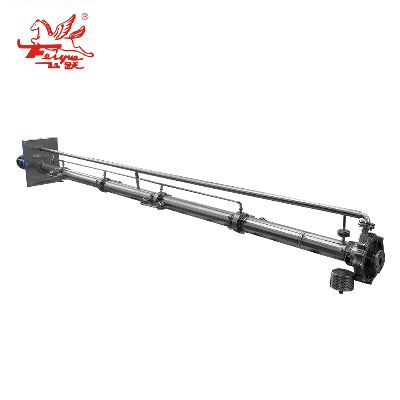

Sulphuric Acid Plant Use Vertical High-Temperature Liquid Sulphur Chemical Pump  Product DescriptionConform to design standard of 1S02858/GB5656 Flow range: 0.2~400m3/hLift range: ~150mDesign pressure: 1.6MPa Application temperature: ~500ºCApplication field: This series of pump is mainly used in sulphuric acid, pyrite acid sulfur recovery, coal chemical industry, petroleum cracking of sulfur recovery and other material need heat preservation conditions.SummarySulfur pump with small flow capacity, high delivery lift, is developed on the strength of previous sulfur acid pump, coll aborated with institutes, colleges, it is characteristic of high delivery lift andsmall flow capacity, impossibly achieved by centrifugal pump, while unstable performance existing during operation of volute pump. There for, adopt latest hy draulic design, integrating unique advantages of centrifugal pump and volute pump. It has filled in domestic gap, reac hed international advanced level, able to substitute for impo ted ones, economizing relevant investment, widely used in acid making procedure to convey liquefied sulfur under 130-158ºC, with improvement, it also can be used under ot her hi - temperature and insulation working conditions.Parameter rangeCapacity:Q:0.2-400m3/hHead:H:2-150mTemperature:T:500ºCPressure:P:1.6MPaUnder water depth:L:0.5-5mMeaning of model code2-Capacity120-Head1-Under water depthLHY-Feiyue Sulfur pump codeChart1Before the pump cover2Impeller nut3Pump body4Impeller5Elbow6Under the collar7Bushing8Liquid pipe9Intermediate to take over10Pump shaft11Packing collar12Stuffing box13Packing gland14Bearing box15Bearing cover16Bearing17Bearing18Lock nut19Bearing cover20Electric frame21On taking over22Bushing gland23On the liner24Guide bearing1Screen2Under the collar component 13Entrance section4Impeller 45Lock nut,bolt(4)6Guide vane 47Pump body8Balancing drum9Under the collar component 210Take over(steam pipe)11Take 2 in the middle(steam pipe)12Intermediate shat sleeve component(2)13Middle bearing14Shaft15Among over 1(steam pipe)16Coupling collar17Coupling shaft snap ring18Intermediate to take over19On the shaft20Steam over21On taking over22Floor23Bearing box24Packing gland25On the shaft sleeve 126Collar 227Bearing28Bearing gland29Dowel pin coupling30Electric trame31Motor          Product ParametersPerformance parameters of the tableCompany ProfileFAQ/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
