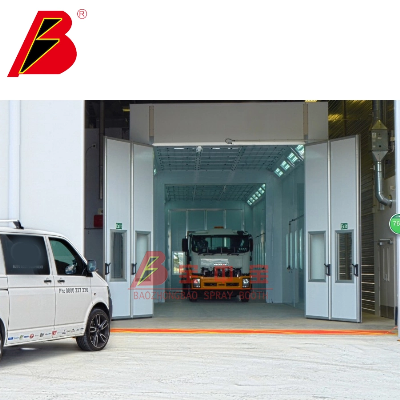

Truck Paint Booths for Coating and Heavy Equipment Spray Refinishing

The Follow project is From Newzealand.We accept different kind of customied painting equipment .Attached follow standard dimention for reference  specifications of spray booth of 15meters, only for reference.model of spray booth:BZB-FB modelmanufacturerJingzhongjingtechnical parameters (L× W× H)outside size15156× 6956× 5800structure parameterthickness of wall panel mm75(L× W× H)inside size15000× 5000× 5000thickness of steel sheet mm0.5Access door width(mm)4000stuffingEPS PanelAccess door hight(mm)4500  grid30*4flat ironair speed when empty(m/s)≥ 0.25shelf of the boothsquare steel pipe+angle iron noise dB≤ 85  mesh square steel pipetotal power kw52  cabinetsquare steel pipe+galvanized steel platemax work temprature 80 centi degreeilluminance parameterlamps(pcs)ceiling lamps72spec. of burnerburner2 sets of RG5S Riello Burnerbottom lamps 40max heat Calories/h 260000*2power/pc W36fuel consumption L/h(13-26)*2lamps 220V/50HZheat-exchangerstainless steelilluminance Lux≥ 800spec. of inlet fan  model of inlet fan                      YDW-5.6S                                                             outlet air parametersoutlet pipe(mm)900× 900   estimated air Volume m3/h17530chimneygalvanized steel platepower/set(KW)7.5hight of chimneystandard 12m plus two elbows  Quatity4electric appliancecontrol box modelPLC control boardspec. of outlet fan  model of outlet fan                      4-82-6.3E                                                                 components of control boxmain parts are importd.estimated air Volume(m 3 /h)34000otherscolorgrey/sky blue/orange(optional)power/set(KW)15work plate lifteroptionalquatity2   remarks made by: Guangdong Jingzhongjing Industrial Painting Equipment Co., LTD.                                                                   Aprill. 30th, 2011    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
