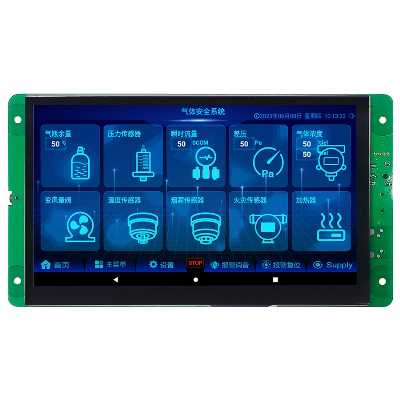

7 Inch Linux Serial Port Touch Screen Supports WiFi Ethernet

Product DescriptionH070F1W series, an industrial Linux touch display intelligent terminal developed and designed with an integrated 64-bit processor and RISC CPU architecture, equipped with a Linux5.4 kernel, equipped with a 7-inch full-view LCD display and a capacitive touch screen to form a powerful human-computer interaction system. The product has a thin, flat appearance, high overall fit, and easy installation, which can be used in indoor and semi-outdoor environments.Product advantagesIntelligent GUI system, users can design and output UI interface program through tools, and easily realize interface touch function.Support multiple networking methods such as WIFI/Ethernet, which can realize remote data transmission, upgrade and updateSupport multi-channel RS232, RS485, and other serial communication, realize exchange communication with external equipmentF133-A/B supports full format decoding, such as H.265, H.264, MPEG-1/2/4, JPEG, VC1, etc.The hardware encoder can encode in JPEG or MJPEG. Integrates multiple adc/DACs and I2S/PCM/DMIC/OWA audio interfaces to provide a perfect voice interaction solution1080p full-format decoding, rich display output interfaces, intelligent carcor2.0 display enhancement technology provide users with excellent video experienceIndustrial-grade capacitive/resistive touch solution, stronger anti-interference, widely used in various complex industrial scenariosIndustrial embedded installation design, suitable for various industriesThrough CE/ROHS and other testing and certification, the product is stable and reliableApplication industry                              Smart Home                                                              New energy                                                       Medical equipment                     Industrial control                                                          Smart locker                                                   Smart robot   Product size diagramProduct ParametersScreen and size parametersDataExplainScreen size type7 inchesScreen ratio 16:9Resolution1024*600 pixels260,000 true color displayColor260,000 colors-Display size (A.A.)154.2 (Wide)*85.9 (H) mm-The size of the whole machine190.5(Wide)*105 .2(High) *24(Thick) mmTouch screen to the highest RJ45 Total height of network portBacklight brightness300 nit The brightness can be adjusted.Perspective (CR>10)Full perspectivePanel type: IPSBacklight life (hours)30000HrsLED backlightMotherboard core parametersDataExplainCPU processorAllwinner F1332 core RISC CPUOperating systemlinux5.4Running memory64MBInternal 64MB, DDR2EMMC8GBEMMC5.0Touch form5-point capacitor and single-point optional-TP Surface hardness7Mohs hardnessTP Light transmittance> 85 Operating voltage and current12V(Typical value)700mAThe smallest 8V, the largest 24V, recommended 12V 1A The above DC stabilized power supplyPower interfaceDC044A; Interface parametersDataExplain Default No.Serial port all the way:RS485Serial port 2, port number:ttyS2Default No.Serial port: RS232Serial port0, port number:ttyS0Default second serial port RS232Serial port3, port number:ttyS3Maximum baud rate 115200Universal serial busRoute 2 HOST, Route 1 OTGIf the USB camera is connected, it can support 200W d silkAudio frequency1-channel mono MIC/bi channel HPO(3.5mmHeadphones), two mono channels SPK(4Rx3W) TF Calorie1 roadThe biggest 64GEthernet1 road10/100M Adaptive network interfaceWIFI1 roadIEEE 802.11Bb/G/n, 2.4G; *optional*Blue tooth1 roadV4.0Environmental parametersTypeProjectSpecification and parametersWorking temperature test parametersStorage temperature-30 ~ 80°CWorking temperature-20 ~ 70°CRelative humidity10~90% RHReliability parametersEMCClass B,EN55032ESDLevel 3Hardware diagram Dissect/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
