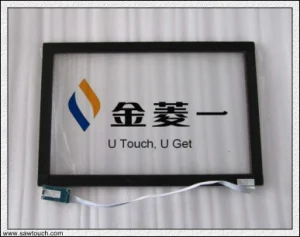

Kiosk Infrared Touch Screen

Basic Info.Size32Touch TechnologyInfraredVandalismTempered GlassDust-ProofYesWater-ProofYesUsing SolutionKTVTrademarkUTouchSpecificationCE, FCC, RoHSOriginBeijingHS Code84732Product Description Infrared touch screen benefits1. High stabilityChanges in the time or environment will not cause any drift.2. High light transmittanceThe touch screen has no intermediate touch overlay, enabling light transmittance to reach as high as 100%.3. Long service lifeExtremely durable, scratch resistant4. Easy activationTouch pressure is not required; No special material is required for touch activation. IR-Infrared   Size specification convention size 32 " to 52 " custom-made size 32 " to 52 " suitable monitor Each kind of plane graphic display device   Function target resolution (interpolation) 4096*4096 Linear error 1.5mm speed of response < 25ms     Specifications   MECHANICAL Input Method Finger or gloved hand activation Touching number of times not limited Touching activation strength infrared touching technology, does not need to touch the activation strength smallest touching object diameter 8mm Resists violence use armored glass, the diameter is 63.5mm (quality is 1.04kg) the superficial smooth steel ball, 1 meter highly free dropping, the test specimen broken surface durability skin hardness equates the glass, degree of hardness rank is 7 levels ELECTRICAL Optical index transmittance ≥ 92%, highest may reach 100% (not to have glass) ENVIRONMENT Temperature Operating -20 to 70 Storage-40 to 80 Relative Humidity Work humidity: 90% RH in 40 without dewing Storage humidity: 90% RH in 40 without dewing Altitude Operating 0~3, 000m Drift No drift Available Size 10.4" to 103" (custom size for OEM available) Electrical specification working voltage Typical value +5VDC, permission scope +4.75V ~ +5.25V power supply USB main line or PS/2 connection power supply, power source ripple biggest 200mV rms Power < 2W, Operating current < 400mA Certificate CE, FCC, SGS Interface USB/EIA-232E Suitable operating system Windows 2000XP�3VistaCE, Linux, Mac OS
