Internal configuration drawing Micro switch series1.Good quality micro switch2.Long life,high reliability.3.A variety of contact terminals4.Standard operating force and low operating force5.A variety of temperature degrees6.A variety of leversProduct show Technical characterictics ItemValueOperating speed0.1mm-1m/s(Related with actuator forms)Operating Frequency Mechanical 60 cycle/min; Electrical 25 cycles/minInsulation resistance≥ 100MΩ(500VDC)Contact resistanceOF>0.75N:≤30mΩOF≤0.75N:≤100mΩ (initial value)(Test voltage) Between terminals of the same polarityAC1000V,50/60Hz,1min(Test voltage) Between current-carrying metal parts and ground (case),and between each terminal and non-cueeent-carrying metal parts. AC3750V,50/60Hz,1minVibration resistance10-55Hz,1.5mm Double amplitudeShock resistanceDestruction:OF>0.5N:1000m/s2(approx.100G)max OF≤0.5N:400m/s2(approx.40G)maxMalfunction:OF>0.5N:200m/s2(approx.20G)max OF≤0.5N:100m/s2(approx.10G)max LifeMechanical≥2,000,000 cycles Electrical≥50,000 cyclesWeightApprox.6.2g(No lever)Safety approvalsUL,CUL,VDE,ENEC,SEMKO,DEMKO,NEMKO,FLMKO,CE, EK,CQCCompany Profile DONGNAN ELECTRONICS CO.,LTD established in 1987, with more than 30 years manufacturing experience in making switches. Mainly produce micro switches, water proof micro switches, power switches, gate control switches, rotary switches, voltage-selected switches etc. We are a national-level new and high-tech switch manufacturing enterprise that has R&D, producing, marketing and after-sales service, and our switches are widely used in whole China and oversea countries. At present, we set up many offices and warehouses in the production area which home appliances are concentrated, to build the fastest technical service and logistics distribution system. Company information Exhibition Certifications FAQ Q1.What is your delivery method?Express delivery/Forwarder, depends on customer's requirement.Q2.Are you a trading company or factory? Factory. Q3.Do you offer free samples?Yes, we can offer some free samples.Q4.When will the goods be shipped out after order placed?The production will be arranged after payment, and the delivery date depends on order quantity. Q5. Do I have more discount if I order large quantity? Better price for large quantity for one shipment. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

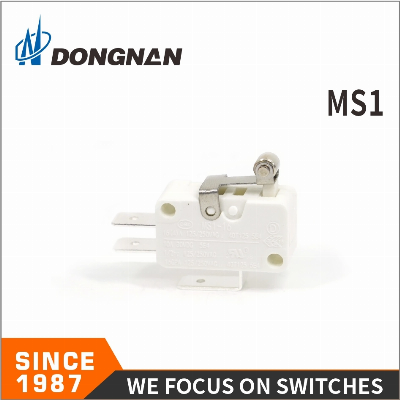

Related products about Ms1 Long Lever Limit Switch Touch Micro Switch for Home Appliance
-
