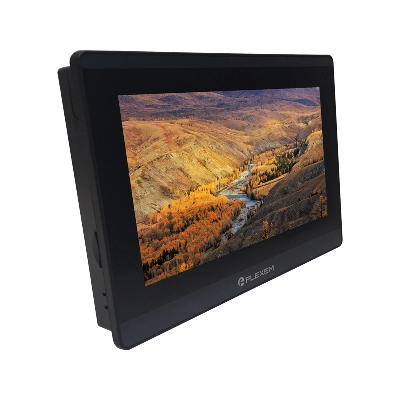

10inch Economic Touch Screen Touch Panel with Ethernet

10inch Economic Touch Screen Touch Panel with Ethernet Flexem  Industrial  HMI  6000  Series,  a  new  generation  of  IIoT  human-machine  interface.  It  is  high-quality  and  cost-effective  touch  screen,  industrial  ABS  plastic  shell,  low  cost,  high  reliability.  The  mainboard is treated  with  a  special  coating  (three  anti-paint)  to  adapt  to  harsh  environments.  The new  model  opens  with  a  more  practical  down-line  approach,  and  the  redesigned  front  face  has  a  better  looking  look,  and higher  resolution  model  is  available.By  selecting  the  FLink  IIoT  module,  you  can  upgrade  the  IIoT  human-machine  interface  immediately  anduses  complete  and  convenient  industrial  IIoT  cloud  platform  service.Hardware parameterDisplay10.1" 16:9 TFT LCDResolution(WxH)1024×600Colors24-bitBrightness400 cd/m²BacklightLEDLCD Life50000 hoursTouch Panel4 wires resistive touch screen(Surface hardness 4H)CPU600MHz ARM Cortex-A8   Memory128M Flash + 128M DDR3RTCBuilt inEthernetNoneUSB PortUSB Slave 2.0 port*1,USB Host 2.0 port*1Download ProjectUSB Slave/U-diskCOM PortCOM1:RS232/RS485/RS422,COM3:RS232LCD viewing angle (T/B/L/R)60'/60'/70'/70'Electrical SpecificationsPower Consumption< 10WRated voltageDC24V,working range DC 9V~28VPower ProtectionProtected from thunderstrike and surgingPower Down Allowed< 5mSCE & RoHSComplied with EN61000-6-2:2005, EN61000-6-4:2007,   RoHS, Surge Immunity:±1KV, EFT:±2KV,ESD:4KV, Air:8KVEnvironmental SpecificationsOperating Temperature0~50ºCStorage Temperature-20~60ºCAnti-UVNot suitable to work in strong ultraviolet light (such as direct sunlight)Operating Humidity10~90%RH(no condensate)Vibration Endurance10~25Hz(X,Y,Z direction 2G/30 minutes)Cooling Natural air coolingMechanical IndexDegree of ProtectionFront IP65(with NEMA panel),Back IP20EnclosureABS+PCPanel Cutout260mm*202mmDimension273mm*213mm*36mmWeightAbout 850g  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
