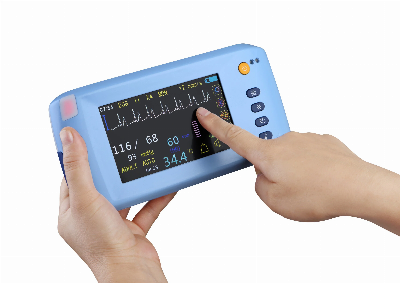

Bluetooth and Touch Screen Ambulance Medical Patient Monitor

  RSD5000Introduction:All-in-one designed module with 5 standard parameters: ECG, NIBP, SPO2, Pulse Rate and Temperature.  Optional parameter: ETCO2This machine can meet all requirements, and meet requirements of hospital & other departments in emergency treatment, first-aid, rescue,etc. Function:Touch screen, 5.0 inch color TFT LCD, simple for operating, quickly & accurately measure the data;Build-in rechargeable Li-battery(7200mAh 3.7V), up to 15hours running time, support AC and DC power;Adjustable audible and visual alarms, and sensor off alarm;Long time monitoring and sleeping monitoring;Easy to carry, suitable for ambulance center, has the stand for fixing;Prior:Storage and review data up to 9999 user ID and 3888groups via Trend Graph and Trend List.Bluetooth data upload to Android mobileBig font screen interface is easy to observe;Back light can be adjusted;Specification:1. General Specifications:Size: 209mm×104mm×47.5mmNet Weight: 655gDisplay SpecificationMeasurement Display: color TFT- LCD/touch screenPower Supply Indicator: Dual-color LED (red/green)Charging indicator: A green LED 2. Power SupplyAC Power AdaptorInput: 100~240V AC, 50/60Hz, 0.7AOutput: DC 5V, 2ABatteryLi-ion rechargeable battery, 3.7V/7200mAHOperating Time: 15 hours with full battery capacity.(Condition: 25ºC, NIBP working period is 15 minutes)Recharge Time: 10 hours.3. EnvironmentTemperatureWorking:0ºC~45ºCTransport and Storage: -25ºC~85ºCHumidityWorking:30%~85 %Transport and Storage: 30%~95 % (no condensation)4. Monitoring ParameterECGInput:5-lead ECG cable, standard AAMI cable connectorLead Selection:I,II,III, avR,avL,avF,CGain Selection:×1,×2,×4,×8Sweep Speed: 12.5, 25, and 50 mm/sFrequency Response: None filter: 0.05~100Hz (-3dB), filter: 0.5~40Hz (-3dB)Calibration Signal: 1mV square wave Heart RateMeasuring Range: 20 bpm~300 bpmRenew Time: 1 time per beatAccuracy:±1 bpmAlarm Mode: Audible and visual alarmSpO2 SpO2%Measuring Range:0%~100%Resolution:1 %Accuracy:±2 %(90%~99%), ±3 %(70%~89%),unspecified (0%~69%)Pulse Rate Measuring and Alarm Range:20~300bpmResolution:1bpmAccuracy:±1bpmNIBP Method: OscillometricMode: Manual, Auto, STATMeasuring Interval in AUTO Mode: 1, 2, 3, 5, 10, 15, 20, 30, 45, 60 (min)Measuring Period in STAT Mode: 5 minCuff Pressure Range:0 mmHg~300mmHgPulse Rate Range:30 bpm~250bpmMeasurement Rage: Adult 30 mmHg~255mmHg, Pediatric 30 mmHg~160mmHgOver-pressure Protection: Adult 300mmHg, Pediatric 220mmHgPressure Resolution: 1mmHgThe SYSTOLIC and DIASTOLIC values measured using this device shall be equal to those measured by trained medical personnel using cuff and stethoscope. The MAP value measured using this device is equal to that measured using blood pressure measurement device. TemperatureInput: Body surface thermal-sensitive resistor temperature sensorMeasuring Range: 0ºC~50ºCAccuracy: ±0.1ºCEtCO2(Optional)Measuring Range: 0~150mmHgResolution: 1 mmHgAccuracy: ±2mmHg@< 5.0% CO2Respiration Rate(Optional)Measuring Range: 0~120rpmResolution: 1rpmAccuracy: ±1rpm5. Storage and Review Maximum Data Quantity: 3888 groupsMaximum Trend Time: Continuous 129.6 hoursStandard accessoriesmain unit15lead ECG cable with TEMP sensor 1NIBP cuff for adult with extend tube 1SpO2 adult finger probe1AC charger1User manual in English1   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
