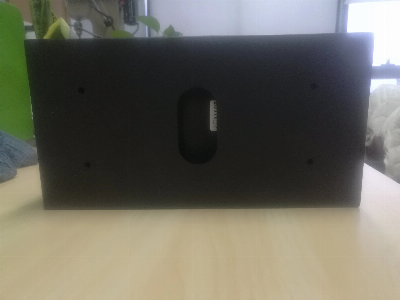

7inch Vertical Touch Interface Panel for Garage Controller

Vertical HMI 7inch Metal Frame Touch Panel for Garage Car Parking FeatureMetal enclosure, high reliability.Fully laminating, high brightness, high resolution. The main board is treated with a special coating (three anti-paint) to adapt to harsh environment.Split type design, convenient installation.2-line serial ports, powerful expanding ability.Totally new configuration software, rich library, powerful functions.SpecificationsHardware  ParameterDisplay7" 16"9 TFT LCDResolution(WxH)1024×600Colors24-bit Brightness450 cd/m²BacklightLEDLCD Life50000 hoursTouch Panel4 wires resistive touch screen(Surface hardness 4H)CPU600MHz ARM Cortex-A8   Memory128M Flash + 128M DDR3RTCBuilt-in IC Card ReaderAvailableUSB Port1 USB Slave 2.0 port, 1 USB Host 2.0 portDownload ProjectUSB Slave port/U-discSerial Communication PortsCOM1:RS485COM2:RS485 LCD viewing angle (T/B/L/R)70'/75'/75'/75'Electrical  SpecificationsPower Consumption< 6WInput PowerDC24V, Working range DC 18V~28VPower ProtectionProtected from thunderstrike and surgingPower Down Allowed< 5mSCE & RoHSComplied with EN61000-6-2:2005, EN61000-6-4:2007, ROHS, Surge Immunity:±1KV, EFT:±2KV,ESD:4KV, Air:8KVEnvironmentalRequirementsOperating Temperature-10~60CStorage Temperature-20~70CAnti-UVProhibit working in strong UV environment(Such as direct sunlight)Operating Humidity10~90%RH (No Condensate)Vibration Endurance10~25Hz (X,Y,Z direction 2G/30 minutes)Cooling Natural air coolingMechanicalIndexDegree of ProtectionFrame confirms to IP54Mechanical StructureMetalPanel Cutout 138mm×270mm×85mmDimensionAbout 1700g  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
