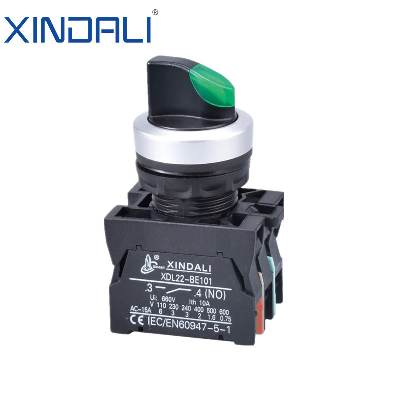

Xdl22-Ck2365 Waterproof Button Switch Selector Light Membrane Switch

Product DescriptionThe push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROHS and UL certified. Basic CharacteristicConforming to standards asIEC60947-5-1:GB/T14048.GB14048.5Ambient temperatureoperating temperature:-5ºC~+55ºC storage temperature:-25ºC~+70ºCOperating and storage air relative humidity35~85%RHVibration frequencyConforming to IEC 68-2-6Impact resistanceConforming to IEC 68-2-27Pollution grade3Installation sortClass 3Protection gradeOrdinary:IP40 IP54Protection:IP65 IP66 IP67 IP68Mechanical lifepushbutton:300*10 push and pull typeemergency button:30*10Fastening torque0.8Nm(MAX:1.2Nm)Product Show  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
