19" Saw Glass Touch Panel Screen Touch Panel/Saw Touch Screen

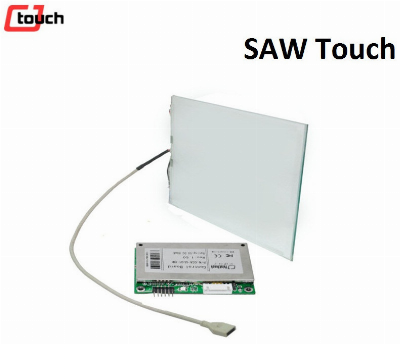

SAW 8.4-32 inch touch screen  open frame touch panel kitCJTOUCH Surface Accustic Wave SAW touch screen, adopts 4mm or 6mm optical glass with fantastic clarity. Transducers sink into glass beveled edge which can prevent transducers from crush dangerous and facilities assembly. It features unrivaled accuracy, reliability, sensitive and drift-free performance, can be touched by fingerer, glove, leather or stylus pen. With Obeytec controller, it enable you to use both USB and RS232 interface, which enhance convenience and flexibility.  Shipping Included1 pcs* SAW touchscreen panel1 pcs* SAW touch controller1 pcs* cable (USB/serial Port)     Obeytec Surface Acoustic Wave SAW Touch Screen Advantages -High image clarity-Free of drift-Z-axis pressure recognition-Strong mechanical strength-Short response time-Customization available on glass sensor size, driver, accessories-Flat surface,the same as Capacitive touch screen-Support Highest resolution -Activated by finger, gloved hand, leather or soft stylus -More than 50 million touches in a single point -Dirt and splash sealed capability  The touch screen part of the surface acoustic touch screen can be a flat, spherical or cylindrical glass plate, which is installed in front of the CRT, LED, LCD or plasma display screen. The glass plate is pure reinforced glass, and unlike other touch-screen technologies, there is no film or overlay. SpecificationTechnologySurface Acoustic Wave(SAW)Sizes7" to 32" (extending)Resolution4096 x 4096 ,Z-axis 256MaterialPure glass(Vandal-proof ,Anti-glare can optional)Transducer positionGlass backAccuracy< 2mmLight Transmission >92% /ASTMTouch Force30gDurabilityScratch-free; More than 50,000,000 touches in one location without failure.Surface HardnessMohs' 7Multi-touchOptional , software supportOperating Temp.-10°C to +60°CStorage Temp.-20°C to +70°CHumidity10%-90% RH / 40°C,Altitude3800mPartsConnect cable,Double-sided adhesive, dustproof stripCertificates CE, FCC, RoHSCotroller Technical SpecificationInterfaceUSB,RS232 can optionalSize(PCB)85mm×55mm×10mmWorking voltage12V±1V & 5V±0.5V optionalWorking Current80mAMaximum Current100mAResponse time≤16msOperating temperature0-65ºCOperating humidity10%-90%RH.Storage temperature-20ºC-70ºCMTBF> 500,000 hoursCertificatesCE, FCC, RoHSOperate systemWinXP / Win7 /WinXPE / WinCE / Lin-ux / And-roid-7- 32'',Custom-Make Supported -Vandalproof,Waterproof,Dustproof,Anti-Glare -3/4/6mm Tempered Touch Glass -5V /12V Voltage,USB+RS232 Interface -Windows /Linux /Android /Imac /Raspberry pi OS -Plug and play ,1 Years Warranty -ELO/3M/GeneralTouch/KeeTouch/ETWO/OneTouch Driver OKTechnical DrawingStandard SAW Touch Screen Parameters/ Frame outlineActive AreaGlassProduct outline8.4"4:3CTB084C-4F 172x130176x134197x156200x15810.0"4:3CTB100C-4F-FFT203x152207x156229x179232x18110.4"4:3CTB104C-4F213x160217x164239x187242x189CTB104C-4F-AL213x160217x164244x193247x19511.6"16:9CTB116C-4K 256x144258x146274x164277x16612.1"4:3CTB121C-4F 247x185251x189273x212276x214CTB121C-4F-AL247x185251x189279x218282x22012.1"16:9CTB121C-4K265x168272x175311x214314x21615.1"4:4CTB151N-4F304x228307x232325x254328x256CTB151C-4F 306x230310x234338x263341x265CTB151N-4F-ELO304x229309x234336x260339x26215.6"16:9CTB156C-4K 347x197351x201381x231384x23317"5:4CTB170N-4F338x271342x275362x299365x301CTB170C-4F 342x272344x276371x304374x30617.3"16:9CTB173C-4K 382x215386x219412x245415x24718.5"16:9CTB185C-4K410x231413x234439x263442x26519"5:4CTB190S-4F376x301380x305404x330407x332CTB190N-4F 382x305386x309413x335416x337CTB190C-4F 382x305386x309417x341420x34319"16:10CTB190N-4K 414x262417x265444x294447x296CTB190C-4K-AL 410x256414x261442x291445x29319.5"16:9CTB195C-4K 435x240439x244475x278478x28020.1"16:9CTB201N-4F410x308412x310442x340445x34221.5"16:9CTB215N-4K474x266480x273506x308509x310CTB215C-4K 477x268480x271511x306514x308CTB215C-4K-AL477x268480x271509x302512x30422"16:10CTB220C-4K 476x297480x302511x338514x34023"16:9CTB230C-4K 510x287514x291549x326552x32823.6"16:9CTB236C-4K 525x297529x301559x331562x33323.8"16:9CTB238N-4K-NW528x298532x302560x330563x33224"16:9CTB240C-4K-VB 531x299535x303570x339573x34116:10CTB240C-4K520x326523x329558x366561x36826"16:9CTB-F260C580x328584x332615x363617x36527"16:9CTB-F270C-4K597x336601x340627x365630x36728"16:9CTB-F280C-MT-4K 616x350620x354647x406650x40832"16:9CTB-F320C-4K 702x397710x405746x442749x444Other SAW Touch Screen1. Waterproof SAW Touch Screen-Size available:15",17",19"-This touch glass is sealed well with plastic or aluminum frame to meet IP65 water-proof standard and to effectively protect the reflective strip from dust and liquid.-Maintenance-free and good durability.-Recommend environment: Applicable to the outdoor environments unsupervised.   2. Anti-glare SAW Touch Screen-Size available: 8.4"-26"-This touch glass is made by anti-glare glass, -Effective reduce the reflective light from the surface of the touch panel to human eyes; -Eye protection and ensure a clear display screen-Recommend environment: Outdoor application or st
