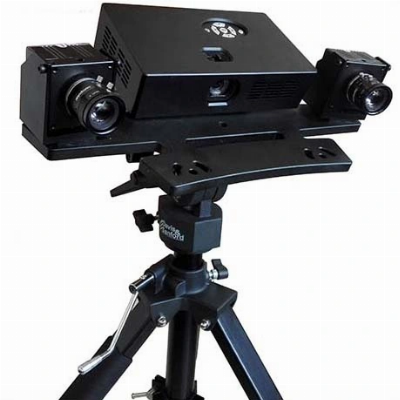

CNC Router Used High Precision 3D Scanner

InstructionZK3D scanner  is a 3D-scanner with high precision,For its satisfactory functions ,customers can make fast three-dimensional scanning from any direction, can achieve fully automatic combination, it can be applicable to measuring   of jewelry, medium size sculptures, Auto parts,even large-scale cultural relic , which makes it to be the indispensable tool for reverse design and quality inspection g and can be used in the fields such as mould design, model scanning, toy and art deign and etc.Also can be used with CNC router.Feature1.Compact and lightweight, weighing less than 1.5kg, can be easily hand-held use.2.Single scan time of less than 0.15 seconds, two-striped light cast scanning camera scanning.3.High-precision, high density, high-speed, full-color scan to ensure high-quality scan data.4.White light-based scanning, on human healthy and eyes safety absolutely.5.Internal storage low tension, 12V battery, no need high-voltage power supply, without high-voltage power cables, and operation of scanning the human body is absolute safe, continuous power supply time is not less than 8 hours.6.Use calibration accuracy without on-site, openning the box you can start to use it.Optical path adopt solidification structure of rigid, avoid movment, scanner structure instability or vulnerability.7.Using high-brightness white LED cold light source, light source life of 100hours.8.Matched ata processing software with autonomous property, the user needs can be targeted for development, increase the special function module.  Type of measurementDouble camera , coded structured light 3D optical scanning (raster photographic style ) ;Measurement methodNon-contact surface measurement modeMeasure distance300mm~400mmSingle side- scan range200×150mm - 240×180mmSingle-sided full scale of measurement points131 million pointsSingle side best measurement accuracy20mmRepeated measurement accuracy8mmPoint cloud spacing0.10mm~0.15 mmSingle side scan time
