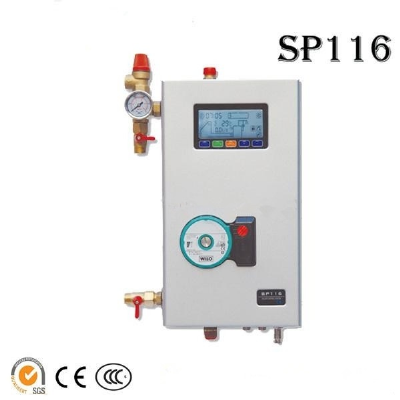

Solar Working Station Sp116

Solar Working Station SP116 For Split Solar Water Heating SystemSP116 Solar Working station for Solar Water Heater, suitable for split high pressure solar hot water system, easy maintenance. Suitable For split high pressure Solar Hot Water System! Technical specification1.  Dimension: 385×220×135mm2.  Input voltage: 200V~240V AC or 100V~120V AC3.  Power: ≤3W4.  Accuracy of temperature measuring: ±1ºC5.  Range of temperature measuring: PT1000: -99~199ºC NTC10K: 0~99ºC6.  Input signals: 1 x PT1000 sensor temperature probe ≤500ºC, silicon cable ≤280ºC;3 x NTC10K sensor temperature probe≤135ºC, PVC cable ≤105ºC7.  Output signals: 1 x Auxiliary heating output (Max. load current: 12A)2 x Relay output (Max. load current: 1.5A)8. System design pressure: 1 MPa9.  Safety valve respond pressure: 0.6 MPa10.  WILO pump model: RS15/6 or RS25/6 for selection11.  Screw coupling: 1/2'' 12.  Pipeline Material: Brass13.  Range of environment temperature: -10~50ºC14.  Water protection grade: IP40Main functions1.Wireless control2.Temperature difference circulation 3.Tank overheating protection4.High temperature protection of system overheating5.Frost protection of pipeline and collector6.Three periods of time adjustable on pipeline circulation7.Three periods of time adjustable on auxiliary heating8.Holiday function9.Earth Leakage protectionFor more infomation, please contact us freely .   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
