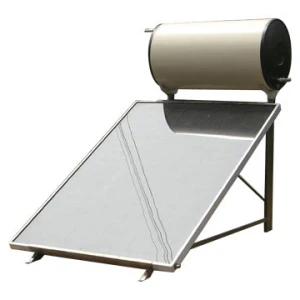

Basic Info.Model NO.SBT-FPCollector ComponentsFlat-plateTrademarkSpiderOriginChinaHS Code8439901000Product Description 1. Simple installation, No maintenance, Effective operation2. Anti-freezing, operation temperature is -33~120 degree centigradeSolar flat panel collector1. Dimension: 2050(L) x 1000(W) x 80 (T)mm2. Gross Area: 2.00 square meters3. Aperture Area: 1.84 square meters4. Absorber Area: 1.73 square meters5. Net weight: 31.5KGS6. Gross weight: 36.5KGS7. Cover material: Pattern temple glass8. Cover Transmission: 85%-87%9. Absorber: Black chrome with nichel on copper plate10. Construction Type: Fin & Tube ( Ultrasonic Welding)11. Header tube size: 25mm*1.8mm(2PCS)12. Riser tube size: 10mm*0.6mm (8PCS)13. Insulation material: Fiber glass insulation14. Insulation Thickness back: 50mm side: 30mm15. Frame: Aluminum Alloy (specially designed for Euro market)16. Max. Operation Temperature: 200Celsius Degree17. Min. Working Temperature: Minus 33 Celsius Degree18. Max. Working Temperature: 120 Celsius Desgree19. Max. Working Pressure: 1.0 Mpa20. Testing pressure: 1.5Mpa21. Back plate: Galvanized Steel Plate 0.40mm
