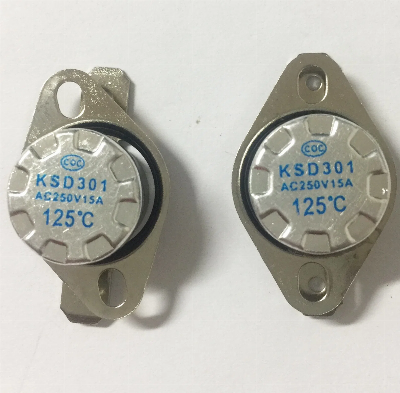

Bimetallic Thermostat Ksd/Sensor/Water Heater Parts

 Product DescriptionNew Manual Reset Temperature Controller Overheat Protection ThermostatKSD301 temperature protector's Principle and structureThe main principle of KSD series thermostat is that one function of bimetal discs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, and then caused on of off the circuit finally. The main characteristic are the fixation of working temperature, the reliable snap action, less flashover longer working life and less radio interference.2. KSD301 thermostat's specification2.1. Electrical Rating: AC 125V max 15A; AC250V 5A 10A 15A max 16A2.2. Action Temperature: 0~250 degree2.3. Recovery and action temperature difference: 10 to 25 degrees, or according to client's request.2.4. Temperature deviation: ± 3 / ± 5 / ± 10 degree or according to client's request2.5. Circuit resistance: ≤ 50MΩ (Initial value)2.6. Insulation resistance: ≥ 100MΩ (DC500V Normal State)2.7. Dielectric Strength: AC50Hz 1500V / min, no breakdown blinding (Normal State)Life cycle: ≥ 1000002.8. Normally closed or open2.9. Two kinds of mounting bracket: Movable or fixed2.10. TerminalA. Terminal type: 187 series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mmB. Terminal Angle: Bending angle: 0~90° C optional2.11. Two kinds of body: Bakelite or ceramic.2.12. Two kinds of temperature sensor face: Aluminium cap or copper head.Product ParametersUSETemerature control/ Overheat protectionApplianceHPC series is in wide use in a great variety of home appliances, such as coffee maker,water dispenser,toaster,microwave overn, rice cooker,dryer,steam Iron,tea pot, water heater and portable icebox etc.Base materialBakelite/Ceramic baseReset typeAuto/Manual resetAmperage5A/10A/16AMax.Operating Temperature270ºCDifferentialTemperature Differential:5-200ºC(15ºC Standard)ToleranceOperating Temp:±2-10ºCContact materialSilver/Gold/Brass/AgNi10Dielectric StrengthParts between electriferous components and non-electriferous ones can bear 1500V 50Hz AC current, which is nearly sine wave,for one minute as bearing test. Resulted no breakdown,no flashover.Insulation ResistanceWith a DC 500V MEGGER, borne DC500V,the tested value is over 100 MΩResistance Between TerminalsBelow 50mΩMaximum ambient temperature300ºCDiameter of bimetal discΦ12.8mmApprovalsUL/TUV/CQC/ROHS  ApplicationProduction line  Certifications FAQQ: Are you trading company or manufacturer ?A: We are factory.Q: How long is your delivery time?A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock,  according to the quantity.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.Q: What is your terms of payment ?A: 100% in advance, T/T.Q:How about your payment and shipment?A:Payment: We accept T/T, Western Union, Paypal etc. terms of payment.   Shipment: For sample order, we use DHL, TNT, FEDEX, EMS etc.express; for batch order, by sea or by air.If you have another question, pls feel free to contact us now.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
