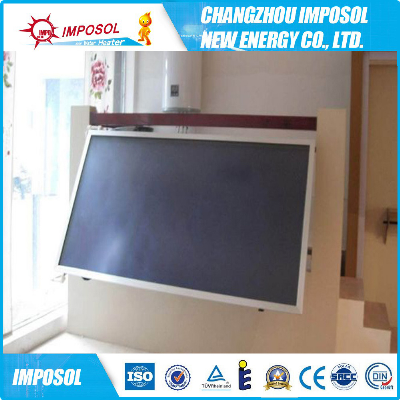

Split Flat Plate Solar Water Heater (FeiTian)

Split flat plate solar water heater/flat plate solar water heater/solar water heater Description: Flat panel solar collector has a high efficiency, Stable performance and long service life. Ultrosonic welding ensures the quick conduction from the thermal heat to the risers. It can endure high temperature without leakage. Its operation temperation: -35--120 degree centigrade. Patterned temper glass or low iron temper glass is not easy to be broken even under very high transmission. Low emission black chrome or magnetic blue sputtering coating has higher absorption rate. Water tank: 1. Inner tank: SUS 304 - 2B stainless steel 0.3mm--0.6mm. 2. Outer tank: A grade color steel. 3. Heat insulation layer: 55--60MM imported PU. The collector absorbs solar energy and transmits it to the water tank through circulation. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically. The circulation pump makes heat-conducting liquid circulate automatically. Then the heat-conducting liquid transfers heat to water by heat exchanger in the tank to heat the water. ModelIPRE E-AIPRE E-BIPRE E-CDimensions(W*L*H)2000*1060*80mm2000*1060*80mm2000*1060*80mmAbsorber area()222Absorber area()1.81.81.8Conversion factor %77.379.872.8Loss coefficient a1w/K3.93.654.33Loss coefficient a2w/K0.00520.00650.021Fluid content L2.222.223Maximum operating pressure Mpa110.3Temperature of operation(-)35~150(-)35~150(-)35~150Net weight KG333332CoreAll copper,ultrasonic welding,Copper and aluminum composite technologyCoatingBlack chromeSelective titaniumPositive electrode oxidationAbsorptance≥95%±2%Emittance≤10%±2%≤4%±2%≤20%±2%AbsorberCopper T2,δ=0.15mm,aluminum,δ=0.15mmHeader pipeCopper T2,22*0.7*1060mm,2pcsRiser pipeCopper T2,Φ10*0.5mm,8pcs,Copper and aluminum,Φ14*0.45mm,7pcsGlass coverNormal glass:4mm/tempered glass:4mm,rhombic tempered glass:4mm/low iron rhombic tempered glass:3.2mmDimensions of glass sheet1988*988mmTransmittance of glass87%~91%FrameAluminum,δ=0.9mmColor of frameChampagne,bronze-coloured,whiteInsulation materialGlass wool,PE Foam/glass wool,high dense polyurethane foamInsulation thickness40mmBack sheetGalvanized plate:0.3mm/embossed aluminum:0.3mmCover sealing materialMetal/EPDM+metalPackingcartonPacking dimension2020*1100*80  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
