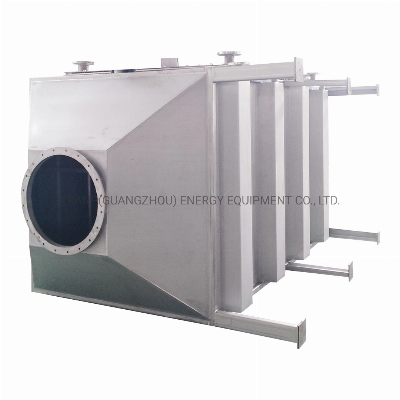

Wholesale Air to Water Heat Exchanger with Fan

 The air radiator is the main device of the heat exchangers using a cold medium and a heat medium for air cooling or heating. It can heat air if fed with high-temperature water, steam or heat transfer oil, or cool air if fed with saltwater, so it is extensively used in the warm-air heating, air-conditioning, cooling, condensing, dehumidifying and drying in fields such as light industry, architecture, chemical industry, machinery, textile, printing and dyeing, electronics, food, pharmaceutical industry, metallurgy, wood, plastics, rubber, etc.SRZ air heater can be used for the air heating purpose of both steam systems and hot water systems. It is mainly used for the air heating of warm-air heating system, air-conditioning systems, and drying devices. As the main part of air heating devices, it is widely used in the heating and ventilation systems of the large buildings of present industrial and mining enterprises.The heat medium of the air radiator may be steam, hot water or heat transfer oil. The operating pressure of steam is 0.2 MPa to 1.6MPa; the temperatures of hot water and heat transfer oil are about 70ºC to 150ºC and 160ºC to 300ºC respectively.Table    Gasket Materials  Material nameCodeApplicable temperatureApplicable placeNBRN-20~110ºCWater, non-polar oil, mineral oil, lubricating oil, silicon oil, etc.EPDME-20~150ºCSteam, water, ozone, polar chemical mediums, alcohol, weak acids, weak bases, salt solutions, etc.Chloroprene rubberC-40~100ºCAmmonia, mineral roil, lubricant, freon, etc.FluororubberF0~180ºCInorganic acids, bases, mineral oil, halohydrocarbon and oxidantSilicon rubberQ-40~200ºCFood field, etc. About Warranty:We promise 1year guarantee, all reasonable relevant cost will be undertaken by us in the first year if our heat exchanger fails to work due to quality problem, only the free repairing operation guide  is available in the rest of the  years via E-mail /Fax/Phone    Company profile:   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
