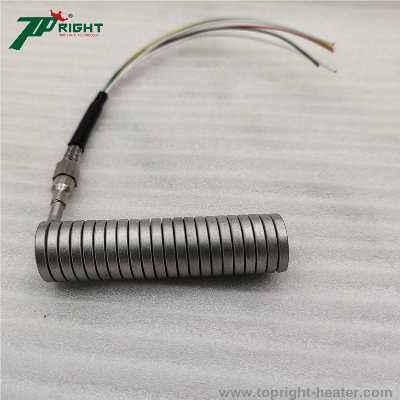

Wholesale Price Heater Hot Runner Induction Coil Heater with Thermocouple Heating Element

DescriptionLength of hot runner heater within 20-3000mm is mainly used for hot runner mold or as well as other precision heating system.Spring heating ring external using high quality Ni-Cr steel tube,the internal use of high purity magnesium oxide,high temperature resistance wire,and fish-class manufacturing technology.The wire is after the annealed,with flexibility can be sent into an arc or circle heating.Its high working temperature,fast heating,uniform heating precision,long service life,can be automatically controlled area,high thermal conduction,while internal heating material damage,while internal heating material damage,external can be reuses. Product ParametersTechnical Parameter Sheath Material ss304/ss321/ss316 /copper Insulation Material High Pure MgO Resistance Wire Cr20Ni80 Voltage 12V ~ 415V Power 70W ~ 3000w Thermocouple Thermcouple J or K MAX sheath temperature 700ºC Cross sections optional 3*3,3.5*3.5,4*4,2.2*4.2mm any other cross-sections can be supplied on request Surface treatment Silver sandblasted or black Working life 10000 hours under 400ºC minus and 2000 hours at 700ºC  Detailed PhotosApplication Applications* Injection molding machine nozzle* Hot Runner Nozzles & Bushings* Packaging machinery* Hot runner Injection Molds* Injection & Blow Moulding Machine Nozzles* PET preform & Thin wall container Moulds* Hot runner ManifoldsFeatures* Fast heating and long service life.* Power and voltage can be customized according to requirements.* Standard sizes available with various cross section.* Can customize the machine specification according to different use requirements.  Related productsCertificationsCompany ProfileTopright Technology CultureSince 2001, Topright Industrial Technology is engaged in the development, design, production and sales in one of the sales of industrial electric heating technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development more than 15 years.Topright products have been exported to Europe, the americas, Asia, etc. More than 200 countries.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
