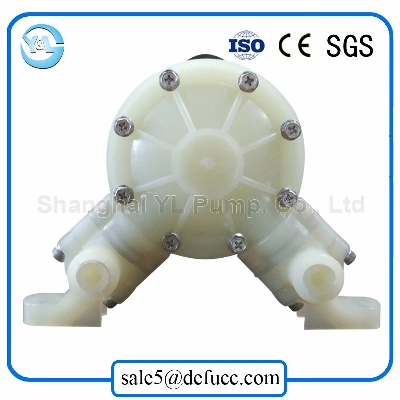

Best Price Micro Plastic (PP) Air Operated Diaphragm Pump

     Best Price Micro Plastic (PP)Air Operated Diaphragm PumpThe air operated diaphragm pump is driven by air and the volume changes caused by compressing diaphragms in both side. The diaphragm pump is used as submersible pump in minig  industry,chemical industry.Technical ParametersModel QBK-06/10Inlet/outlet Dia.mm6/10inch1/4 or 3/8Max. Flow Ratem3/h1.62L/min27Headm0-70Max.Suction strokem6.4Max. Particle Dia.mm1.6Max. Air Supply Pressurekg/cm27Max. Air Consumptionm3/min0.14  Features1. The air diaphragm pump has the function of self priming without rotating parts. It can achieve dry priming and wet priming, which self -priming height is 5m and 8m respectively.2. With sectional type structure, this self -priming pump can be used for conveying two different liquid by double diaphragm.3. Our pump can be used directly as a submersible pump, it uses air as the power source, and does not have the leakage and other security risks. This diaphragm pump has lower cost than submersible pump which is caused by the maintenance of motor.4. Pumps provide stall-free, ice-free operation.5. Bolt joint design provides even sealing pressure for optimal performance.6. Diaphragm,ball and ball seat adopt imported materials with longer service life.7. Due to their pneumatic motor, they could be used in potentially explosive areas.8. Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.Customer FeedbackThe Service1. Delivery: Delivery time will be on time as the contract. Usually, the delivery time of diaphragm pump is 5-7 working days.2. Warranty: 1 year for the pump body, 3months for the main working parts.3. Package: According to your quantity, we use strong carton or plywood case which is durable for ocean transport.4. Shipping: By Sea, By Air and By International Express.5. Payment: we can accept T/T, L/C , West Union and so on.6. Pre-sales Service: According to your requirement, we will give you our profession advice of pump solution.7. On-sales Service: We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you our production situation.8. After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if u need./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
