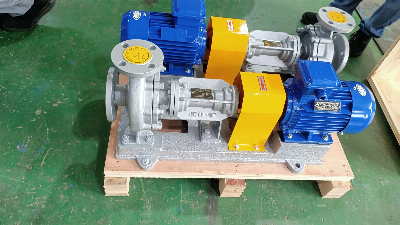

Air Cooled Hot Oil Thermal Oil Transfer Pump Fuel Pump (LQRY)

Product DescriptionLQRY type hot oil pump adopts the self-heat-radiating structure, change the traditional water cooling structure, make it more simple, small volume, economy operation cost, good performance, reliable operation, it is the second generation product based on our country digesting and absorbing foreign technology.Product Advantages1. Basic structure is single stage single suction cantilever feet support, pump suction is axial inhaled, discharge center vertical, and installed in a same base with motor.2. Pump supported by double ball bearing, front end lubricated by lubricating oil, back end lubricated by grease, a guide tubing in the middle, to observe the conditions of sealing at any time and recovery of heat conduction oil. 3. Hot oil pump shaft seal: (1) With the combination of packing seal and mechanical seal, packing seal use high temperature resistant packing, has the good thermal adaptability, while mechanical seal adopts high mechanical strength and wear resistance, good hard alloy material, which guarantees the sealing performance under high temperature conditions. (2) Adopts imported polytetrafluoroethylene (PTFE) as lip shape seal, make the sealing performance much better, seal reliability of 25 times than rubber seal, and with very strong corrosion-resist ability.   Model MeaningFor example: LQRY 65-50-170LQRY - hot oil pump 65 - pump suction diameter mm 50 - pump discharge diameter mm 170 - pump impeller nominal diameter mm Product Parameters       ModelCapacity(m 3 /h)Head(m)Speed(r/min)Power (KW)Eff.n%NPSH(m)ShaftMotor26-20-1004.51528250.450.75400.850-32-15082228401.01.5421.650-32-160102528401.52.2421.865-40-16012.52528802.53452.250-50-17012.53228903.24452.550-50-150241828903.14461.865-40-190184028904.55.5522.865-50-180323229004.55.5522.765-50-170402529004.55.5522.765-50-150521629004.25.5522.865-40-200255029006.77.5633.180-50-180404029006.77.5633.180-50-170602029006.77.5633.1100-65-190603829309.211683.5100-65-2008040293012.515703.5100-65-2205850293012.515683.5100-65-2109045293015.718.5703.6100-65-2305860293015.518.5623.5100-65-23010055294019.522703.6125-100-19015530293017.622723.8100-65-24010070295025.53069.84.1100-65-25710080295032.537673.6125-100-22016045295025.537753.6125-80-25016060297035.545745125-80-2701508529704655735125-100-25020060297042.85576.86125-100-25726070297064.375776.8125-100-2652008029705975746125-100-2453005529706175747.5125-100-26030070297075.39078.28125-100-2702208529706890766125-100-2802608529707590766.8150-125-25035060297075.290768.6150-125-2404005029707290769.8150-125-27034076297089.511078.68.5150-125-25040060297088110749.8150-125-28040078297010613280.69.8150-125-280370852970106132809.7250-200-500500801480136160765300-250-500600801480158185709250-200-5507008014801902208114/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
