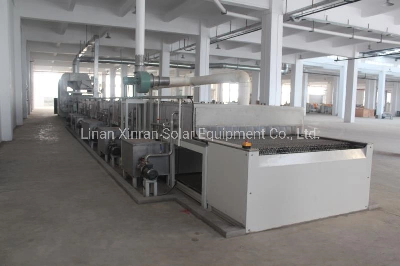

Electric Water Heater Tank Machinery for Chemical Cleaning and Dry Line

I.  Design parameters and specifications1).Product type: Electric Water Heater tank2). Plate size:L×W×H=600×500×2.0(mm);Cover size:D×H=320×170(mm)3).Output:100 Set/ Hr(60L single bile)4).Conveying mode: stainless steel plane conveying;5).Standard transmission line speed:0.7 m/min, stepless speed regulation: 0.5-1.5 m/min;6). Heating method:The electric heating tube is used to centralize heating to assist hot air circulation in the oven.The pretreatment tank liquid is heated directly by stainless steel heating tube. Process flow:No.Process nameProcess time (Min)Process temperature(ºCRemark1Pre-Degreasing6040~50Electric heating2Degreasing12040~50Electric heating3Washing1#60//4Washing2#60//5Blow water/Compressed air/6Drying480120~150 Electric heating7Cooling120/Fan8Unload /Manual  II. Equipment Specifications, Types and Budget TablesNo.NameSpecifications and modelsQtyUnit1Pretreatment equipment 1set1.1Tank 1set1.1.1Pre-Degreasing 1set Size of inner :L×W×H=2.2×0.7×0.5(m)   Inner wall1.5mm thick SUS201 stainless steel plate   Heat preservation layer50mm thick, rock wool    Out Wall 0.8mm thick SUS201 stainless steel plate   Cover0.8mm thick SUS201 stainless steel plate   Skeleton and columnSection steel   Overflow pipe1.5 inch stainless steel pipe   Drainage pipe, ball valve2 inch stainless steel pipe   Filter netStainless steel material, 60 meshes2layer Electric heating tubeStainless steel heating pipe25KW1.1.2 Degreasing 1set Size of inner :L×W×H=2.2×1.4×0.5(m)   Inner wall1.5mm thick SUS201 stainless steel plate   Heat preservation layer50mm thick, rock wool   Out Wall 0.8mm thick SUS201 stainless steel plate   Cover0.8mm thick SUS201 stainless steel plate   Skeleton and columnSection steel   Overflow pipe1.5 inch stainless steel pipe   Drainage pipe, ball valve2 inch stainless steel pipe   Filter netStainless steel material, 60 meshes2layer Electric heating tubeStainless steel heating pipe45KW1.1.3Washing1-2#Each Including:2set Size of inner :L×W×H=2.2×0.7×0.5(m)   Inner wall1.5mm thick SUS201 stainless steel plate   Skeleton and columnSection steel   Overflow pipe1.5 inch stainless steel pipe   Drainage pipe, ball valve2 inch stainless steel pipe    Filter netStainless steel material, 60 meshes2layer1.2Sprinkling System 4set1.2.1Pre-Degreasing 1set Pump2 in. Carbon steel pipe pump, 1.5Kw1 set Seal ringVulnerable parts   Main pipe2.5 inch galvanized pipe1set Manifold pipe1 inch galvanized pipe5 Row Nozzle Fast-loading universal plastic nozzle70 pi ball valve2.5 inch ordinary ball valve1set1.2.2 Degreasing 1set Pump2.5 in. Carbon steel pipe pump, 4Kw1set Seal ringVulnerable parts   Main pipe 2.5 inch galvanized pipe1set Manifold pipe1 inch galvanized pipe7Row NozzleFast-loading universal plastic nozzle98pi ball valve2.5 inch ordinary ball valve1set1.2.3Washing1-2#Each Including:2set Pump2 in. Carbon steel pipe pump, 1.5Kw1set Seal ring Vulnerable parts   Main pipe2 inch galvanized pipe1set Manifold pipe1 inch galvanized pipe5 Row  Nozzle Fast-loading universal plastic nozzle70 pi  ball valve 2.5 inch ordinary ball valve1set1.3 Sprinkling Room 1set  Size of inner :L×W×H=12×2.0×0.7(m)    Inner wall 1.2mm thick SUS201 stainless steel plate    Top wall 1.2mm thick SUS201 stainless steel plate   structureAdopt Cover plate structure, convenient maintenance    Floor 1.5mm thick SUS201 stainless steel plate    Skeleton and column Section steel  1.4 Water blowing device 1set structureUse compressed air to blow water (air source provided by customers)1set NozzleSpecial nozzle1set pipegalvanized pipe1set1.5Waste Gas Discharge System 1set BlowerCentrifugal fan,2.2Kw1set Discharge pipesmade from  PVC25 mi2Conveyor system 1set Conveying modeStainless steel plane conveying   Conveyor specificationsL×W×H=22.1×1.8×0.7(m)   Speed adjustable range0.5-1.5m/min;   Chain2 inch stainless steel roller chain92meter Shaft piercingStainless steel shaft, 150 mm apart306pi Mesh beltLine diameter 2.0mm, 1.7m wide SUS304 stainless steel mesh.46meter trackstainless steel1set Skeleton and columnSection steel1set Drive device3 Kw, 3 emergency stop switches1set Tension deviceScrew tensioning form.1set BracketAdjustable foot cup1set3Drying  ovenTemp.120~150ºC1set Size of inner chamberL×W×H=5.6×2.0×0.7(m)   structureThe baking furnace adopts a straight-through structure, and the exhaust gas discharge pipe is set at the inlet and outlet of the furnace to be outdoors.   Inner wall 1.0mm thick galvanized plate   Outer wall 1.0mm thick colour steel plate   Heat preservation layer100mm thick, rock wool   Skeleton and columnSection steel   Waste gas discharge pipe1.0mm galvanized plate16 meter4Heating System 1set Maximum temperature ≤160ºC,Temperature is adjustable   ModeDirect Heat Circulation by Hot Air with Electric Heat Pipe   Heating tubeStainless steel heating pipe65kw Hot air circulating fanWater-cooled heat-resistant fan, 4kw, Foshan1 set Air trough and duct in furnace11.2mm thick galvanized sheet   Heat exchange chamber  Inner wall 1.0 mm sta
