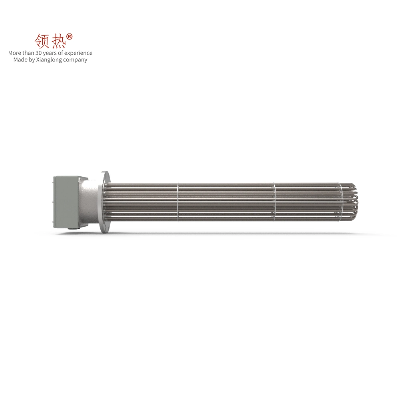

50kw Flange Immersion Industrial Electric Air Heater

50kw Flange Immersion Industrial Electric Air Heater  Flange HeaterModelXL-250-380/50-2Power(KW)50Voltage(V)380Wiring Form Frequency(Hz)50/60Cold Insulation Resistance(Ω)≥5Wiring Group2Over-temperature Protection Switch (yes/no)yesTotal Current(A)75.97Per Group Current(A)37.98Interphase Resistance(Ω)11.55Surface Load(W/cm²)2.81Heating MediumAirMaterial of Heating TubeSS321Standard of FlangeHG/T 20592-2009 DN250 PN10Material of FlangeSS304Design Pressure(Mpa)1.6Operating Pressure(Mpa)1Design Tempreture(ºC)250Operating temperature(ºC)200Protection GradeIP65Explosion-proof Grade/Design StandardsJB/T 2379-2016Heating Tube Diameter(mm)16Length of Heating Tubes Under The Flange(mm)1560Cold Zone Length of Heating Tubes Under The Flange(mm)200Center Distance of Heating Tube(mm)40Quantity of Heating Tubes(pieces)18Product Dimensions For Reference(mm)1861*392*395Weight For Reference(KG)115Introducing our 50kw Flange Immersion Industrial Electric Air Heater, a top-notch solution for your heating needs.  This high-performance immersion air heater is specifically designed for industrial applications, ensuring efficient and reliable heating.  With its flange immersion design, it guarantees optimal heat transfer and uniform air distribution.  Crafted with precision and utilizing advanced technology, this heater is built to withstand demanding environments.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
