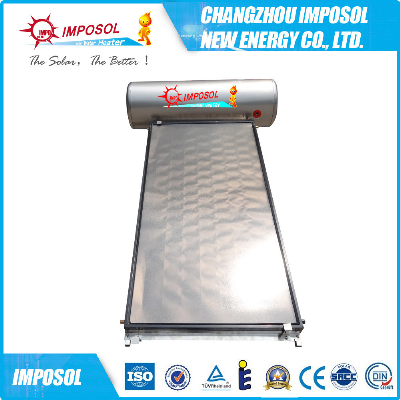

Blue Titanium Flat Plate Solar Water Heater

ModelFlat Plate Solar CollectorCapacity(Liters)Loading Quantity   (20GP/40HQ)Gross Area(M2)Unit Area (M2NO .IPFT 100II GS2M22M2110049/118IPFT 150II GS2M22M2115042/102IPFT 200II GS3M23M2120031/75IPFT 300II GS4M22M2230023/55Technical Specifications Flat Plate Solar Collector Part :Dimensions : 2000*1060 ( 1560 )*80 mm , Gross area 2 ( 3 ) m2, Absorber area 1.8 ( 2.7 ) m2 .Core material : 22mm header copper pipe with 10mm branch copper pipe - 0.6mm thickness , aluminum heat absorption plate wth black chrome coating .Cover glass material : Low iron tempered glass 3.2mm . Transmittance 91%, EPDM+metal sealedFrame material : Aluminum alloy 1.0mmInsulation material : Glass wool ad PE foam ,35mm thicknessBack sheet material : galvanized plate 0.3mmWorking ( Testing ) pressure : 600kpa ( 800kpa ) Solar Water Tank And Frame Support Part :Outer Tank : Painted galvanized steel - 0.4mm thickness , free-welding technology .Inner Tank : SUS304-2B food-grade stainless steel - 1.2mm thickness , laser welding technology .Insulation Layer : High density polyurethane - 50mm thickness , 72 hours efficient thermal insulation .Frame support : Painted galvanized steel - 1.5mm thickness , anti-corrosive and anti-ultraviolet . M8 Stainless steel SUS 304 bolts and nuts .Silicone seal ring and dust ringStainless steel SUS304 - 2.0mm thickness 3/4' or 1/2' inlet, outlet, air vent Pressure&temperature valve Magnesium anode rodPressure relief valve with check valveThermal circulation connection pipe with insulation   Optional Accessories :Electrical heater Solar ControllerFreeze Protection ValveVacuum breaker valve   Contact UsName:Tim ZhuImposol New Energy Co., Ltd., locates in Changzhou City, Jiangsu Province, Changzhou, a prefecture-level city in Jiangsu province, is located on the southern bank of the Yangtze River near the river mouth. Our company is a professional solar energy company in China which includes research, manufacture and marketing. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
