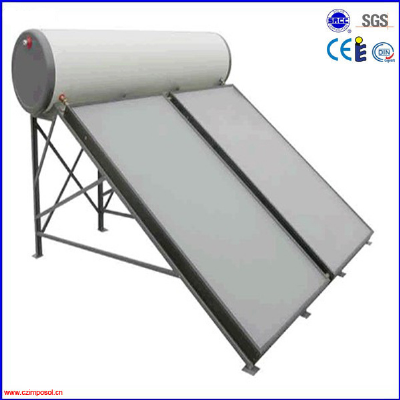

Integrated Flat Plate Solar Water Heater

Flat plate solar water heater 1) Header pipe: Copper pipe, Absorbing fin: Aluminum or copper ( Specification of flat plate pls see "BaoBei series " flat-plate solar collector in my website ) 2) Outer tank shell: Coloured steel or stainless steel, 3) Inner tank: Stainless steel 3042B or 316, 100L-350L 4) Insulation: By polyurethane Thickness: 55-65mm 5) Rubber Seals and Rings: UV stabilized high temperature silicon rubber 6) Optimal installation angle: 20-80 degree 7) Inlet & Outlet: 1/2" or 3/4" 1. Flat-plate collector doesn't require vacuum with steady thermal performance. Perfect unity and long-term use. 2. In flat-plate collector system, water or working fluid flow in the metal pipe without touching the glass cover, so the tipe will not burst for sudden heat or sudden cold. 3. Flat-plate collector can be installed without space or be installed compactly. It not only supplies hot water but also owns the roof feature functions such as insulation, shading, water-proof and etc., which substitutes some even all of the roof materials. 4. The heat collector can be designed in various shape, size can be designed to match building materials and the structure. 5. Good pressure performance enables stability of the system. To learn more about Solar water heater services, contact us today. Certificate: SRCC, Solar Keymark, CE and ISO9001  Model IPFT-100-GS/SS IPFT-150-GS/SS IPFT-200-GS/SS IPFT-300-GS/SSflatplatesolarcollectorquantitydimensionslight areacoatingheaderinsulation11,030*2,030mm1*2.00selective absorbingCu 22 mmGlass wool11,030*2,030mm1*2.00selective absorbingCu 22 mmGlass wool1/21,030*2,030mm1/2*2.00selective absorbingCu 22 mmGlass wool2/31,030*2,030mm2/3*2.00selective absorbingCu 22 mmGlass woolwatertankcapacitydiameteroperating pressureinsulating layerinsulation thicknessconnectionsinner materialouter material100L540mm/580mm6barpolyurethane50mm3/4″SUS 304/SUS316Lcolor steel/SUS150L540mm/580mm6barpolyurethane50mm3/4″SUS 304/SUS317Lcolor steel/SUS200L540mm/580mm6barpolyurethane50mm3/4″SUS 304/SUS318Lcolor steel/SUS300L540mm/580mm6barpolyurethane50mm3/4″SUS 304/SUS319Lcolor steel/SUSsupportmaterialAnti-corrosinusehot Galvanized steelPowder coatedFlat and slope roof installationconnectionpipeMaterialDiameterinsulating materialinsulation thicknessflexble stainless steel pipeDN20-3/4″elastomer rubber with protective PE film20mm/13mm            /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
