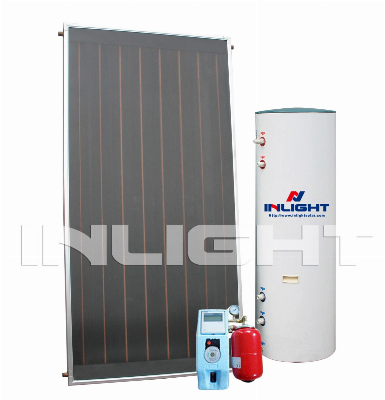

Tempering Glass Split Aluminum Copper Flat Plate Solar Water Heater

Flat Plate Solar Water Heater 1. OEM available 2. Intelligent operation 3. High efficiency 4. It works even freezing -36 Flat Plate Solar Water Heater Features description The split flat plate solar water heater composes of flat plate solar collector, storage water tank, workstation system and interconnecting pieces. Flat Plate Solar Collector: 1) Copper core and pipes in flat plate as heat exchanger, with a quick startup and super efficiency. 2) Three high-tech methods of coating (Selective coating / Black chrome / Titanium-Nitride-Oxide) to meet your upper needs 3) Ultrasonic technology ensures seamless jointing of copper core and pipes 4) Modularized collector, arbitrary combination with architectural structure, adaptable to either slope or flat roof, little maintenance needed Pressurized Water Tank 1) Inner water tank: Food-grade stainless steel SUS304-2B as inner tank keeps the water clean and drinkable, automatic argon-arc welding technics ensures long lifespan (15 years) with good pressure bearing. 2) Water tank shell: Color steel plate much durable and appealing. Stainless steel shell makes it a choice for higher requirements. 3) Insulation Layer: Germany-imported polyurethane integrated foam-forming with twice slaking treatment, preserves hot water constantly 4) Pressurized water tank with super hydraulic bearing pressure makes your life more comfortable 5) Copper coil could be installed inside water tank for twice hear exchange efficiently, one more copper coil installed could be connected with radiator or other devices for house heating or connected with other heating devices such as gas to assist solar water heating. Workstation System: 1) An integrated system composes of intelligent controller, circulating pump, flow meter, relief valve, pressure gauge, expansion vessel, check valve 2) More intelligent operation, when temperature discrepancy between collector and water tank reaches set value, the controller shall start the circulation pump automatically for heat exchange to raise the water temperature in storage tank Accessories: 1) Electrical heater, as an auxiliary heating element in case of raining or snowing so as to supply hot water continuously 2) Magnesium rods, soften hard water so as to protect system from water scale effectively Warranty: Three-year international responsibility for integrated system and 15 years for vacuum tubes due to original quality problems Flat  Plate   Solar Collector  Spec. (mm)  2000*1060*70        2000*1060*80        2000*1060*90  Cover Glass  Tempered/ Tempered  woven / tempered low-iron  woven glass   Coating  Selective / Black Chrome  Core  All red copper core & pipes  Insulation  Glass wool + benzene plate/ Glass wool + polyurethane foam    Water tank  Capacity  100L/ 120L/ 150L/ 200L/ 250L/ 300L/ 400L/ 500L  Inner tank    Food-grade stainless steel SUS304-2B  Copper coil    All red copper Φ 12 X 1.0mm  Insulation    Imported polyurethane integrated foam-forming 50mm  Tank shell    Color steel plate / Stainless steel        Bracket  Spec. (mm)  1.2 ~ 1.5mm in thickness  Material    Hot-dip galvanized steel / Stainless steel / Aluminium alloy  Accessories  Workstation, Electrical heater, Magnesium rods,   T& P  valve      Pressure  7 bar      Tilt angle  0° ~ 90°    Water output  45~95 ° C/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
