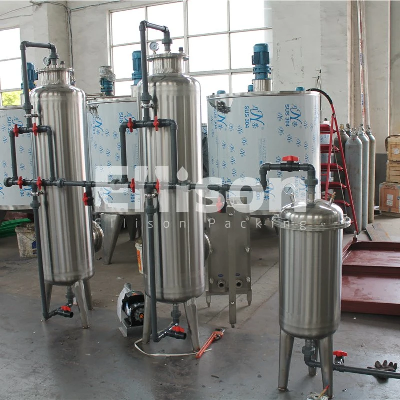

Automatic Pure Mineral Water Reverse Osmosis Water Treatment Plant What is RO plant?RO plant is raw water through precision filter, granular activated sand filters, activated carbon filters, compression, and then the pump pressure, the use of (ro) reverse osmosis membrane pore size 1/10000μm make a higher concentration of water into low concentration of water, while the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed with a large number of full isolation, to achieve the required physical and chemical indicators for drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. It is key equipment of pure water plant. Components listNo.EquipmentproductSpecification1Raw water pumpBooster pumpSUS304,CNP2Pretreatment systemQuartz sand filter and activated carbon filterSUS304/FRP filter tanks;Auto control valve/Manual valve3Security filterCartridgeSUS3044PP filter5filter,40inches5High pressure pump SUS304,CNP6 RO filter4040DOW/VONTRONVesselFRP/SUS304ComponentsPressure meter, Flux meter, Pressure controlled meter, Washing solenoid7Electrical control systemElectrical box(SUS304)PLC, AC contactor, Relay,Power switch8Pipelines SUS304/UPVC9Stainles steel frame SUS304/UPVCVideo link 32-32-10 water rinsing filling capping machine for production line (taken from client's factory)https://youtu.be/RzZ7MJpObDgComplete production line for mineral water filling capping packing line (taken from client's factory)https://youtu.be/WW3lujT3QeYFlow chartFunction Product NameDetailsWater Storage TankIt use to storage raw water, Stable Ro system raw water flow and pressure,protect the raw water pump. The raw water tank with built-in water stainless steel ball valve and liquid level controller.Sand FilterIt is widely used in RO system to remove different types of particles, such as suspended solids (turbidity), colloidal compounds and etc. This process will reduce the load on the back-end filtersActive Carbon FilterThe active-carbon filter is commonly used for removal of organic substance and heavy metal element, suspended solids and etc. It can effectively reduce the level of COD and improve the taste of water . After the quartz sand filter and active carbon filter.Sodium-ion FilterSodium Ion exchanger we also called softer,that softer theory is exchanging NA+ of resin itself of Ca++ Mg++ of water resource with ion to make water resource soften and become soft water. Sodium Ion exchanger is including refreshing device and pump etc.Fine FiltePrevent the particles entering the membrane, scratched the surface of the membrane. In the normal operating condition, the filter can maintained for 3 mouth. The filter structure for fast replace.RO SystemIt can removes the hydronium, organic substance, colloid, bacteria and other impurity by the method of membrane. And the water can be desalted and purified. The water must be pretreated before entering into the RO system, or it will bring damage to the RO membrane.Ultraviolet SterilizerThe products adopt a high-intensity,long-lived UV germicidal lamp,the device is reasonable,compact,and adopts the structure of secondary disinfection,so health indicators completely according to the state standard.Ozone GeneratorFour connections installed on the ozone generator: air inlet:/Ozone outlet/chilling water inlet/chilling water outletPumpIt will deliver the raw water to the system, it is control by PLC. Liquid level controller can control the booster pump's start and stop.Option partWhat is meant by EDI?Electrodialysis technology and ion exchange technology, through the cation, anion membrane on the choice of positive and negative ions through the role of ion exchange resin on the exchange of ions in the water under the action of the electric field to achieve the migration of ions in the water, which can achieve a deep water purification desalination, and through the water electrolysis of hydrogen ions and hydroxide ions on the packaging resin for continuous regeneration.More photos for refParameter ModelCapacityof water(Ton/hour)General Power(KW)Electrical Power(50-60Hz)Membrane(Pic)Size (L*W*H)(mm)Weight(Kg)RO-100L/H0.11.0AC220VEC4021-800A690*570*1490100RO-250L/H0.252.2AC220V 18A / 380V 9AESPA4040*21550*900*1820150RO-500L/H0.52.75AC220V 18A / 380V 9AESPA4040*31550*900*1820250RO-700L/H0.74.25AC220V 27.5A / 380V 13AESPA4040*41550*900*1820350RO-1000L/H13.75AC220V 24A / 380V 12AESPA4040*41980*900*1940500RO-2000L/H24.75AC380V 8.8AESPA4040*64800*700*2050700RO-3000L/H35.75AC380V 10AESPA4040*76000*800*2200800RO-4000L/H47.5AC380V 12AESPA4040*87000*900*24001000RO-5000L/H512.5AC380V 25AESPA8040*98000*1000*27001500RO-6000L/H615AC380V 30AESPA4040*104300*1000*23001700RO-12000L/H1219AC380V 35AESPA8040*128500*1600*19202500RO-15000L/H1519AC380V 35AESPA8040*1510100*1870*30004000RO-20000L/H2022.5AC380V 45ACPA28040*2010000*1700*42004600RO-30000L/H3037.5AC380V 68ACPA28040*2513000*1900*35006000After-sales service* Lifetime
