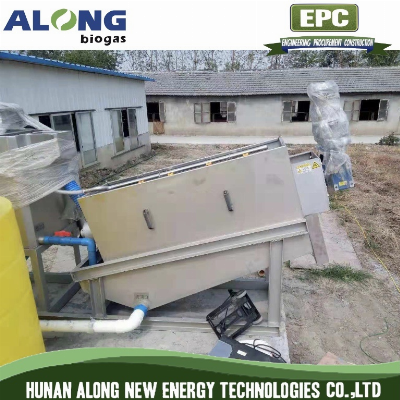

The stacked screw sludge dewatering machine uses the principle of screw extrusion, through the strong extrusion force generated by the change of screw diameter and pitch, and the tiny gap between the moving ring and the fixed ring, the sludge can be squeezed and dewatered. A new type of solid-liquid separation equipment. Construction principle: The main body of the stacked screw sludge dewatering machine is composed of multiple fixed rings and floating rings, and the spiral shaft penetrates the filtering device formed therein. The front section is the thickening section, and the rear section is the dewatering section. The sludge thickening and squeezing and dewatering are completed in one drum, replacing the traditional filter cloth and centrifugal filtration methods with a unique and subtle filter body mode. Dehydration principle: After the sludge is concentrated by gravity in the thickening section, it is transported to the dewatering section. As the filter gap and pitch gradually become smaller, and the back pressure plate is blocked, a great internal pressure is generated and the volume is continuously reduced. , To achieve the purpose of full dehydration. ModelDS standard treatment amountSludge treatment amount (According to different concentration)10000mg/L20000mg/L30000mg/L40000mg/L50000mg/LYDL1015~7kg/h~0.5m³/h~0.25m³/h~0.2m³/h~0.15~0.14YDL13110~14kg/h~1m³/h~0.5m³/h~0.4m³/h~0.3~0.28YDL20115~20kg/h~1.5m³/h~0.75m³/h~0.6m³/h~0.5~0.4YDL20230~40kg/h~3m³/h~1.5m³/h~1.2m³/h~1~0.8YDL25125~40kg/h~2.5m³/h~1.25m³/h~1m³/h~0.9~0.8YDL25250~80kg/h~5m³/h~2.5m³/h~2m³/h~0.8~1.6YDL30150~70kg/h~5m³/h~2.5m³/h~2m³/h~1.5~1.4YDL302100~140kg/h~10m³/h~5m³/h~4m³/h~3~2.8YDL303150~210kg/h~15m³/h~7.5m³/h~6m³/h~4.5~4.2YDL304200~280kg/h~20m³/h~10m³/h~8m³/h~6~5.6YDL351100~120kg/h~10m³/h~5m³/h~4m³/h~3~2.4YDL352200~240kg/h~20m³/h~10m³/h~8m³/h~6~4.8YDL353300~360kg/h~30m³/h~15m³/h~12m³/h~9~7.2YDL354400~480kg/h~40m³/h~20m³/h~16m³/h~12~9.6YDL401130~160kg/h~13m³/h~6.5m³/h~5m³/h~4~3.2/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
