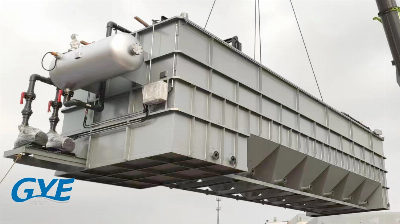

Water Treatment Plant Horizontal Daf Combined Dissolved Air Flotation Water Purifier

Product DescriptionDissolved Air Flotation ( DAF System) is a water treatment process that clarifies wastewater (or other water, such as river or lake) by removing the susupended solids or oil & grease. It is widely used in the waste water treatment for solid-liquid separation, it can remove the suspended solids, oil & grease and colloidal substance effectively. Meanwhile, the COD, BOD can be reduced. It's the main equipment for the waste water treatment.Technical Data SheetModelCapacity(m3/h)Dissolved air volume (m3/h)Main Motor (kw)Air Compressor (kw)Skimmer(kw)Agitator (kw)×2Total(kw)Without/with reactionGF-10.5-10.3-0.50.550.550.180.37×21.28 / 2.02GF-21-20.5-0.80.550.550.180.37×21.28 / 2.02GF-32-31-1.51.10.550.20.4×21.85 / 2.65GF-53-51.5-21.10.550.20.4×21.85 / 2.65GF-105-103-41.50.750.20.4×22.45 / 3.25GF-1510-154-52.20.750.40.75×23.35 / 4.85GF-2015-205-72.20.750.40.75×23.35 / 4.85GF-3020-308-125.50.750.40.75×26.65 / 8.15GF-4030-4010-155.50.750.40.75×26.65 / 8.15GF-5040-5015-187.51.50.40.75×29.4 / 10.9GF-6050-6018-207.51.50.40.75×29.4 / 10.9GF-7060-7020-25112.20.40.75×213.6 / 15.1GF-8070-8025-30112.20.40.75×213.6 / 15.1GF-10080-10035-40152.20.40.75×217.6 / 19.1GF-150120-15040-50152.20.41.1×217.6 / 19.8GF-200180-20070-802240.41.1×226.4 / 28.6This is just for reference, if any special request, please contact with our sales and technicians, thanks.Structure FeaturesDAF System mainly consists of dissolved air pump, air compressor, dissolved air vessel, rectangle steel tank body, skimmer system.1. Easy operation and simple management, convenient control the wastewater quantity and quality.2.The micro bubbles produced by the dissolved air vessel are just 15-30um, it's adhesive with flocculant strongly to achieve better flotation effect.3. Unique GFA dissolved air system,high efficiency of air dissolving can reach 90%+, strong ability for clogging4. Chain-plate type skimmer, stable operation and high efficiency to scrap.Working TheoryThe dissolved air water produced by GFA system is pumped into the air releaser by reducing the pressure. 15-30um micro bubbles from the air releaser would adhere to the suspended solids make them lighter than water, then the solids combined with micro bubbles can float onto the surface to form a scum layer that would be scrapped by the skimmer system into the sludge tank. The lower clean water flows into the clean water tank. At least 30% of the clean water is recycled for GFA system while other is discharged or pumped to next process.ApplicationDAF System, as one waste water treatment process, it is widely used in sewage purification engineering. It can be used for these industries:1. Paper industry -- pulp recycle in white water and clean water recycled for use.2. Textile, printing and dyeing industry -- color chromaticity reduction and SS removal3. Slaughterhouse and food industry4. Petro-chemical industry -- oil-water separationWorkshops and LabPacking and Shipment/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
